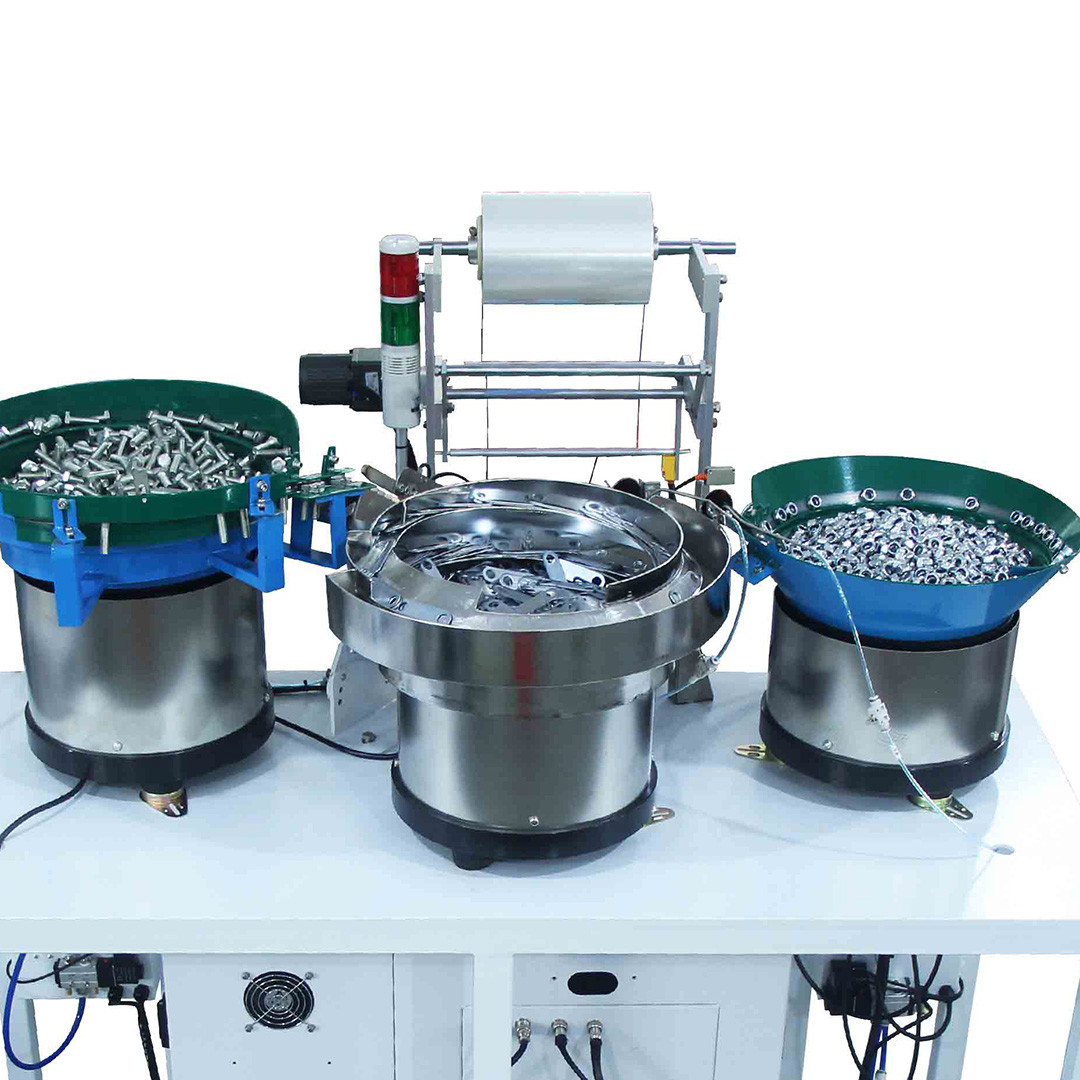

GL-B864 Small Fully Automatic Packaging Machine Support Customization with Four Vibrator Bowl
1 , Product overview:
Vertical design: The machine adopts a vertical design, which takes up less space and does not occupy too much floor area. This allows it to be conveniently placed in the work area or production line, saving space and improving work efficiency. At the same time, the vertical design also facilitates operators to observe and manage the packaging process.
Suitable for various types of products, such as food, cosmetics, medicine, etc. It can handle products in granular, powdery or solid form and adapt to packaging containers of different sizes and shapes. This versatility allows the machine to meet the packaging needs of different products.
2 , Product specifications
| Equipment model | GL-B864 |
| Counting method | automatic |
| Bag size | width 40-140 length 200 (usually 140) |
| Packing speed | 1-60 bags/min |
| Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
| Voltage power | 220V/50HZ P≈0.6KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | figure cutter tooth shape |
| Dimensions | 1450mm*980mm*1700mm(L*W*H) |
| Weight | about 400KG |
GL-B864 Small Fully Automatic Packaging Machine Support Customization with Four Vibrator Bowl
3 , Technical characteristics
1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.
2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3. The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.
4.After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
4 , Operating procedures
GL-B864 Four Vibrator Bowl Packaging Machine, tablet capsule mixing packaging machine, the machine automatic counting automatic filling packaging.
1 . The vibration plate is made of 304 stainless steel. The material is automatically arranged by the vibration plate and rises along the spiral track. 2 . After optical fiber counting, the track stopper is put into the shaper.
3 . The sealing area of the equipment is working, the bag is automatically pulled and sealed, and then the bag is cut off, and the packaging is completed.
4 . Then we can see that the final product is r-angle four-side seal. The bag type is beautiful, uniform, the quantity is accurate, there is no damage and it is easy to tear, which is convenient to tear the package.
GL-B864 Small Fully Automatic Packaging Machine Support Customization with Four Vibrator Bowl
5 , FAQ
Q : Are you a real factory/manufacturer?
A : Of course. Our factory is third party inspected. We welcome you and pick you up from your hotel for free.
For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.
Q : Can engineers serve overseas?
A : Yes, we can send engineers to your factory, but all costs will be borne by the buyer. In order to save your cost, we will send you a complete and detailed machine installation video and provide you with full help throughout the process.
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3. The weight of each package you need.
4. Your requirements for machine and bag type.
