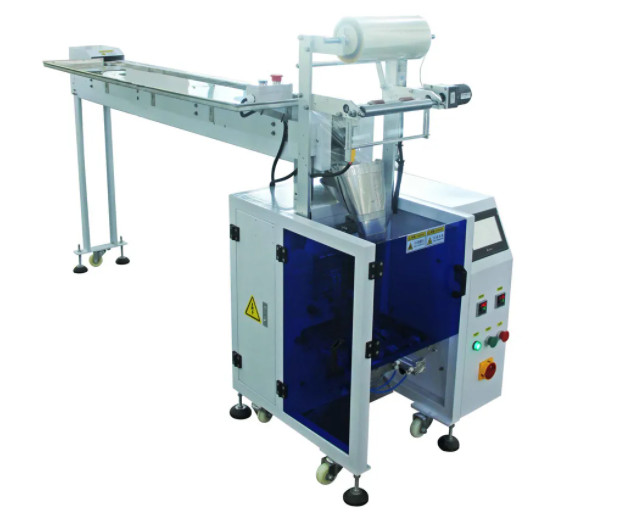

Vertical Counting Manual Feeding Chain Bucket Type Hardware Bag Sealing Packing Machine
XK-B860P(Hand throw chain bucket packing machine)
1) Technical characteristics
1.Automatic filling, automatic packing, sealing function, output count.
2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3.The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.
4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check and reweigh, labeling machine, hoist and other expansion equipment.
2) Scope of application and functional features
1. This product is suitable for packaging of various products, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses chain bucket type to drive the material box to rotate, manually put the material into the material box, chain bucket will fill the product to the molding machine for automatic packaging.
2. It is suitable for "OPP/CPP/ composite membrane" as sealing material.
Product specifications
| Equipment model | GL-B860T |
| Counting method | Manual placement |
| Bag size | Width 40-140 length 200 (conventional 140) |
| Packing speed | 1-60 packs/min |
| Sealing shape | stripe, back seal/three side seal (usually back seal) |
| Voltage power | 220V/50HZ P≈0.6KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | Pattern knife tooth shape |
| Dimensions | length1700mm / width 750mm/height 1550mm |
| Weight | about 130KG |
