Weighing Screening Screw Packaging Machine With Two Vibrating Plates

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

Weighing Screening Screw Packaging Machine With Two Vibrating Plates

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B862C

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Automatic Packaging Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : automatic

Packing speed : 1-20 bags/min

Voltage power : 220V/50HZ P≈5KW

Dimension(L*W*H) : 1300*1100*1800mm

Weight (KG) : About 450kg

Warranty : 1 year

Contact Now

Weighing Screening Screw Packaging Machine with Two Vibrating Plates

GL-B862C Weighing Screening Screw Packaging Machine With Two Vibrating Plates

1 , Product overview

The weighing and screening double-disc screw packaging machine is a fully automatic vertical equipment. It is suitable for packaging of various granules, tablets and hardware, especially for products with large quantities such as screws and nuts. It is widely used in hardware manufacturing, machinery manufacturing, electronic manufacturing and other industries that require large-scale packaging of screws
The machine is equipped with a specially customized vibration plate to adapt to the packaging needs of screws and other samples. The vibrating plate can automatically arrange materials and weigh and package them by weighing. The weighing accuracy is ±1 gram, ensuring the accurate weight of each packaging unit.
The machine automatically arranges the materials (screws) through the vibrating plate, and automatically counts and fills them. This ensures the correct number of screws are in each bag and increases packaging efficiency and accuracy. The machine then automatically performs packaging and sealing operations.
The machine adopts an intelligent temperature control system, which can stably control the sealing temperature. Operators can adjust temperature settings as needed to accommodate different types of sealing materials and product requirements.

2 , Product specifications

Equipment model GL-B8612C
Counting method

weighing complement number

Bag size width 40-230 length 300
Packing speed

stripe, back seal/three side seal (usually back seal)

Voltage power 220V/50HZ P≈5KW
Air supply 0.4-0.8MPA
Bag mouth shape figure cutter tooth shape
Dimensions 1300*1100*1800mmL*W*H)
Weight about 150KG

Weighing Screening Screw Packaging Machine with Two Vibrating Plates

Weighing Screening Screw Packaging Machine With Two Vibrating Plates

3 , Technical characteristics

1. The vibrator bowl tailored for the packaging sample can be weighed and packed by weighing method with the accuracy of ±1g

2. Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.

3. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

4. The length of packaging bag is adjustable, the total number of packaging is adjustable, and the automatic alarm is given when the set number is reached.

5 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

4 , operation process

GL-B862C weighing and selecting 2 vibrator blows screw packaging machine, adopts weighing method to measure and screen the unqualified quantity. The equipment can automatically code, seal and cut.

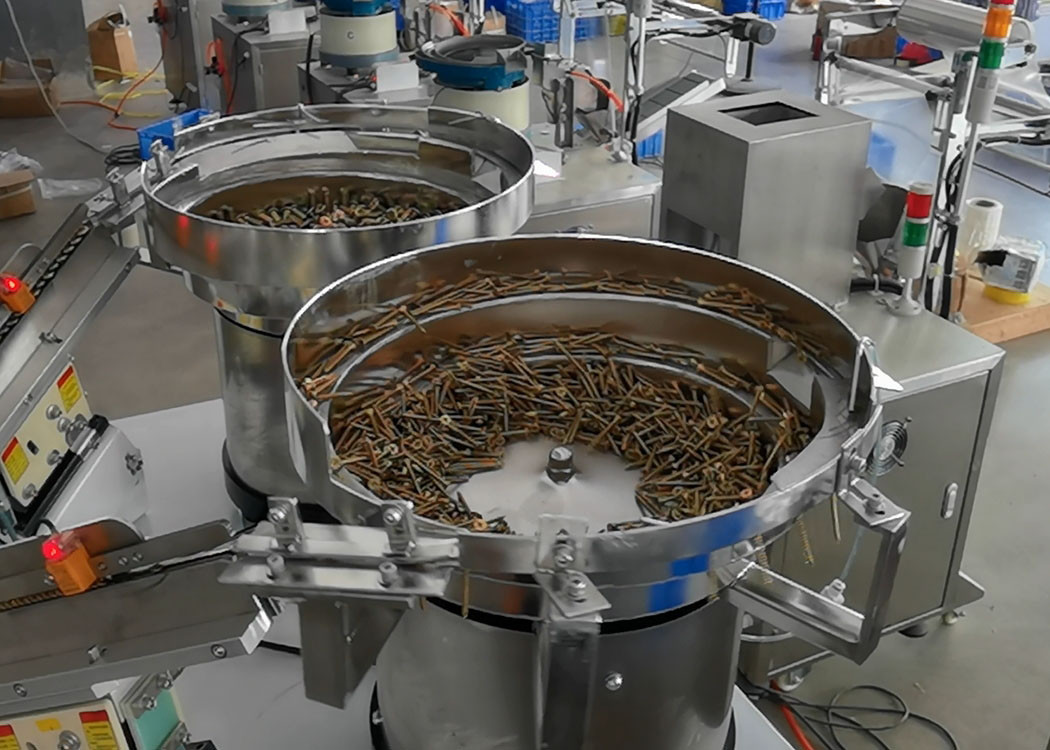

1 . The vibrator blow automatically arranges the screws.
2 . The screw passes through the track to automatically hoard the prodcut, and the product is counted by the air cylinder to block, and the product is discharged according to the set quantity.
3 . After the screws are discharged, they enter the weighing and selecting mechanism for choosing, and the qualified flow to the packaging machine for packaging, and the ones that do not reach the qualified quantity are rejected to the box
4 . Screws not meeting the set weight will be transported to the back of the machine for placement.
5 . Open the safety door, we will see that the equipment sealing area , the material is automatically filled, the horizontal sealing is then sealed and cut, and the packaging is completed.

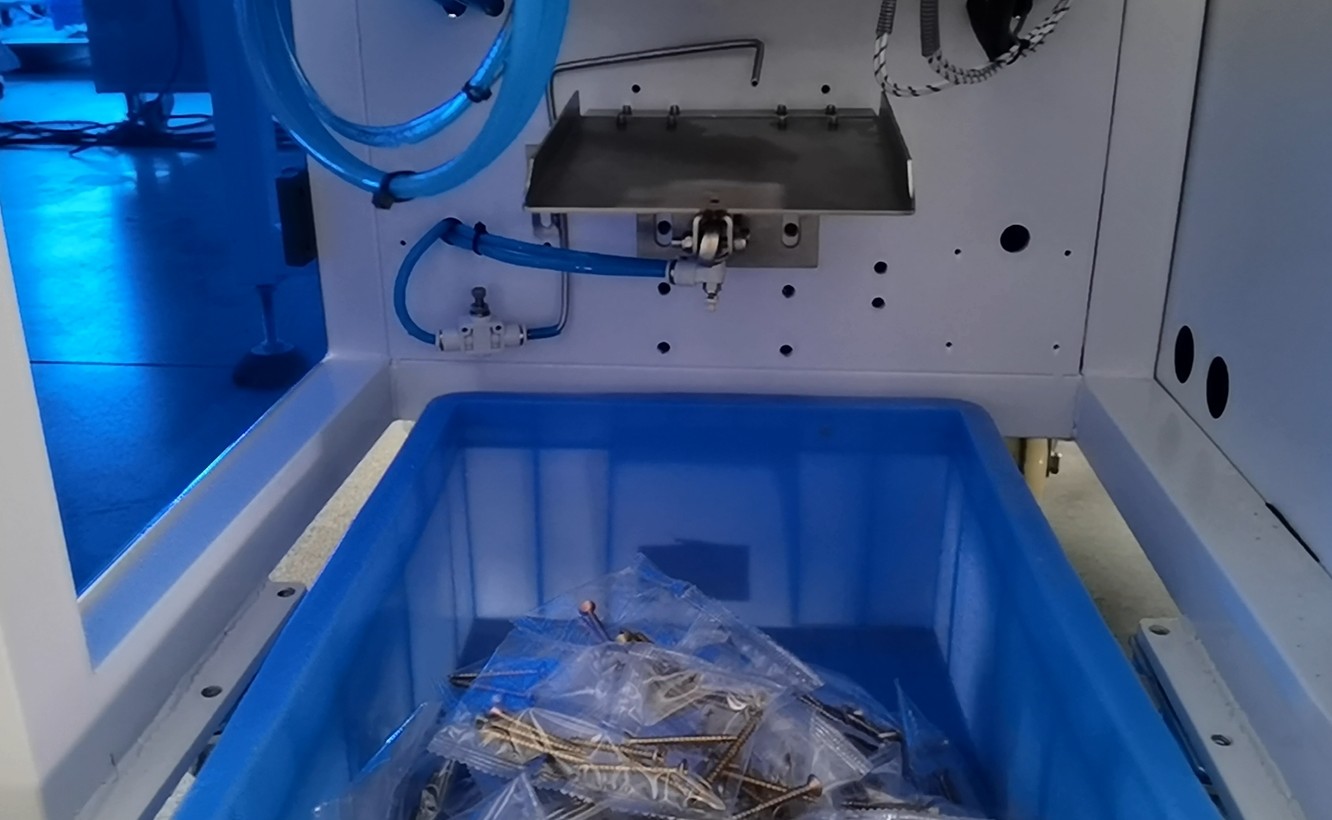

6 . The packaged product is lifted and unloaded through the tray, and the function of beating materials can also be added.

Weighing Screening Screw Packaging Machine with Two Vibrating Plates

Weighing Screening Screw Packaging Machine With Two Vibrating Plates

5 , Company Profile

Hongqiao Trading Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing, and marketing of various types of packaging machinery. Its main products are: screw packaging machines, hardware parts packaging machines, fastener packaging machines, and fully automatic description bag packaging. Machines, fully automatic intelligent packaging lines, etc., are widely used in furniture, bathroom, lighting, locks, auto parts, medical and industrial product packaging and other industries.

Our company has self-operated import and export rights and has very rich experience in exporting mechanical products to all over the world. Our products have passed the EU CE certification.

We always adhere to the work philosophy of innovation, meticulousness and perfection, follow the product concept of "quality first", and create more stable, intelligent, efficient and high-quality packaging machinery and equipment for domestic and foreign customers.

6 , Why choose us

① ,15+ years of production experience,reliable supplier and professional team

② ,1000+ representative case,various packaging experience

③ ,1 to 1 ,after-sale service ,customer satisfaction

④ ,60+ certificate patents,mature technology
