CE Auto Hardware Packing Machine Back Sealing With Belt For Casters

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

CE Auto Hardware Packing Machine Back Sealing With Belt For Casters

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B860P

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Hardware Packing Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : Manual delivery

Packing speed : 1-60 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 1700*750*1550mm

Weight (KG) : About 100kg

Warranty : 1 year

Contact Now

Hand Throwing Packaging Machine High Efficiency with Belt for Casters

Product overview

The advantage of the belt-type hand-caster packaging machine is that it can improve packaging efficiency and consistency, reduce the need for manual operation, and ensure that the quantity and quality of each packaging caster meet the requirements. This kind of machine is widely used in industrial production, especially in scenarios where high-speed packaging of large quantities of products is required.


Depending on specific needs, some suppliers may offer customized belt-operated hand-fed packaging machines. This means the equipment can be customized to the size, shape and packaging requirements of specific products to ensure optimal packaging results and production efficiency.
Some advanced belt-type manual packaging machines can be integrated with other automation equipment to achieve a higher level of automated production lines. For example, it can be connected to automated product supply systems, testing equipment or packaging labeling machines to achieve continuity and automated control of the entire production process.

Product specifications

Equipment model GL-B860P
Counting method Manual delivery
Bag size

width 40-140 length within 200 (normally 140)

Packing speed 1-60 bags/min
Sealing shape stripe, back sealing/three side sealing (conventional back sealing)
Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape

figure cutter tooth shape

Dimensions 1700*750*1550mm(L*W*H)
Weight about 100KG

Hand Throwing Packaging Machine High Efficiency with Belt for CastersCE Auto Hardware Packing Machine Back Sealing With Belt For Casters

Operation process

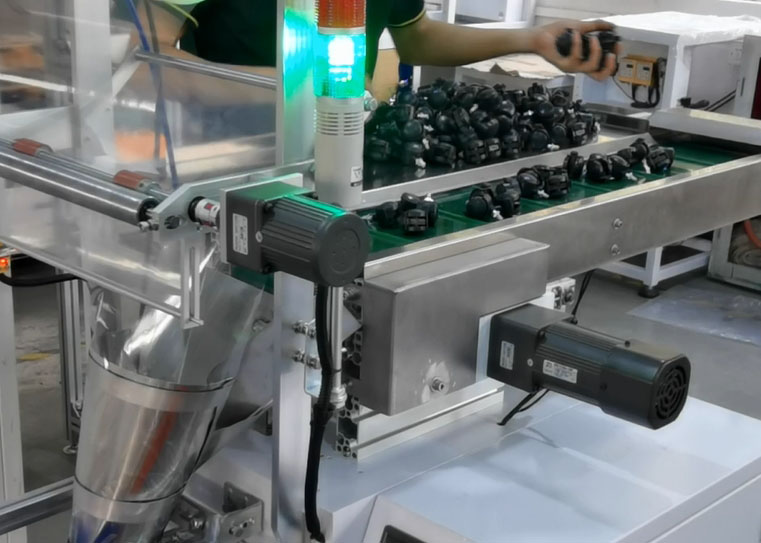

GL-B860P,the product is placed manually, and the belt is conveyed to the former, the equipment can automatically count, fill, seal and cut.


1) Manually place the casters on the tray into the belt according to the package quantity.
2) The casters are conveyed by the belt to the former for filling.
3) Open the safety door, will see that the sealing area of the equipment . Automaticlly filling , and then sealed and cut off by the horizontal sealing, finally packaging.
4) The bag of the final product was beautiful and uniform, and the number was accurate.

Scope of application and functional features

1) This product is suitable for products with long, irregular product shapes, large length and width ratios, or products that have extremely high surface requirements such as electroplating, spray painting, baking varnish and other process treatments, electroplating process plastic products, toys, bolts, screwdrivers, Data , etc., using manual material input, belt conveying material to the forming machine, automatic filling and packaging.

2) It is suitable for "OPP/CPP/ lamination film" as sealing material.

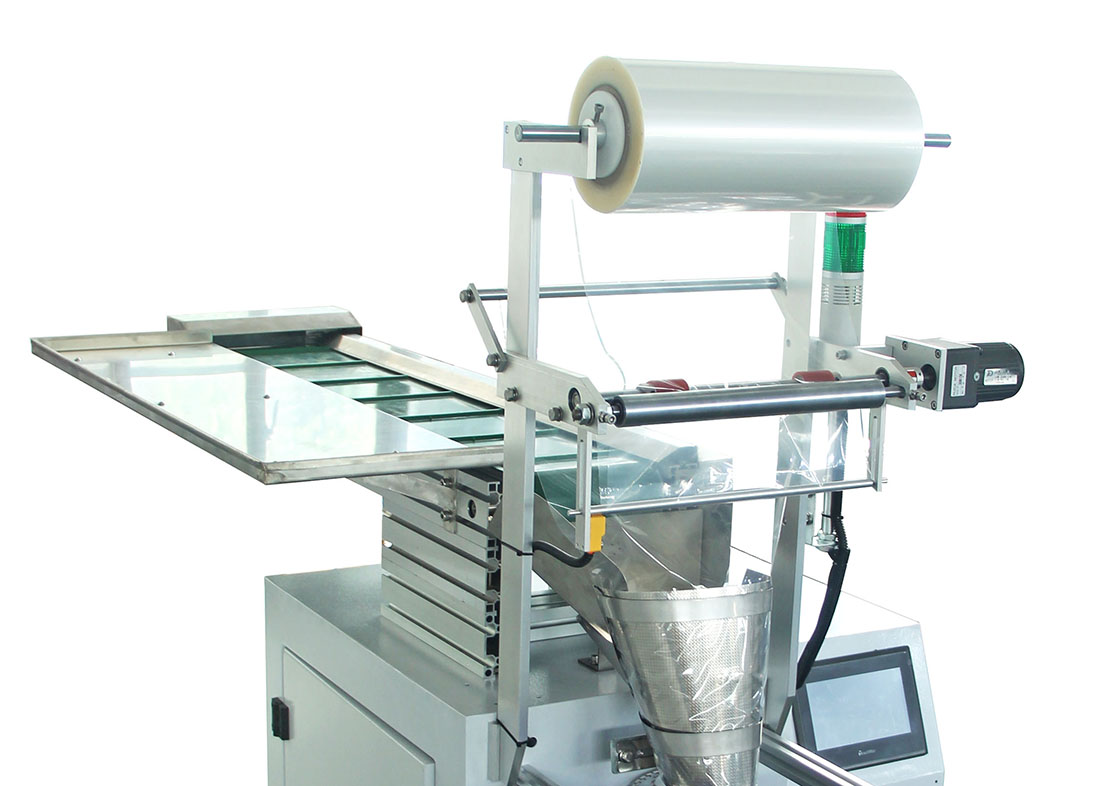

Hand Throwing Packaging Machine High Efficiency with Belt for Casters

CE Auto Hardware Packing Machine Back Sealing With Belt For Casters

Technical characteristics

1) Automatic filling, automatic packing, sealing function, output count.

2) Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3) The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.

4) After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

our service

We have perfect service system

Before sales Services

① . many professional packing videos,give you direct feeling about our machines.

② . free packing solution from our R&D department.

In sales Service

We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After sales Service

① . Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .

② . The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .

③ . If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available
