Automatic Sealing Vertical Packaging Machine Hand Throwing For Irregular Items

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

Automatic Sealing Vertical Packaging Machine Hand Throwing For Irregular Items

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B860X

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Furniture Fittings Packing Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : Manual delivery

Packing speed : 1-60 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 900*900*1800mm

Weight (KG) : About 150kg

Warranty : 1 year

Contact Now

GL-B860X Vertical Hand Throwing Packaging Machine with Automatic Sealing and Cutting for Irregular Items

GL-B860X Vertical Hand Throwing Packaging Machine With Automatic Sealing And Cutting For Irregular Items

1 , Product overview

Semi-automatic hand-fed packaging machines are usually equipped with automated control systems for setting packaging parameters and monitoring the work process. The operator can adjust the packaging speed, sealing method, cutting length, etc. through the control system, and monitor the operating status and abnormal conditions of the machine.
The packaging machine is equipped with an automatic sealing and cutting device, which can automatically seal the packaging material after filling is completed and cut it to form an independent packaging unit. This ensures the seal and integrity of the package and reduces the need for manual handling.
This equipment can also be equipped with a hoist as needed to improve the efficiency and convenience of material delivery. The elevator can be used to lift materials to an appropriate height, making it easier for operators to place materials into the packaging area.

2 , Product specifications

Equipment model GL-B860X
Counting method Manual delivery
Bag size

width 40-230 length within 300 (normally 140)

Packing speed 1-60 bags/min
Sealing shape stripe, back sealing/three side sealing (conventional back sealing)
Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape

pattern knife tooth shap

Dimensions 900mm*900mm*1800mm(L*W*H)
Weight about 500KG

GL-B860X Vertical Hand Throwing Packaging Machine with Automatic Sealing and Cutting for Irregular Items

Automatic Sealing Vertical Packaging Machine Hand Throwing For Irregular Items

3 , Technical characteristics

1 . automatic filling bag according to the manual placement., automatic counting, automatic filling, automatic packing, sealing function, output count.

2 . Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3 . The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.

4 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

4 , Operating procedures

GL-B860X automatic filling bag according to the manual placement. And the equipment can automaticlly sealing and cutting, add hoist.
Maunal placement product to package into former when the green light up.

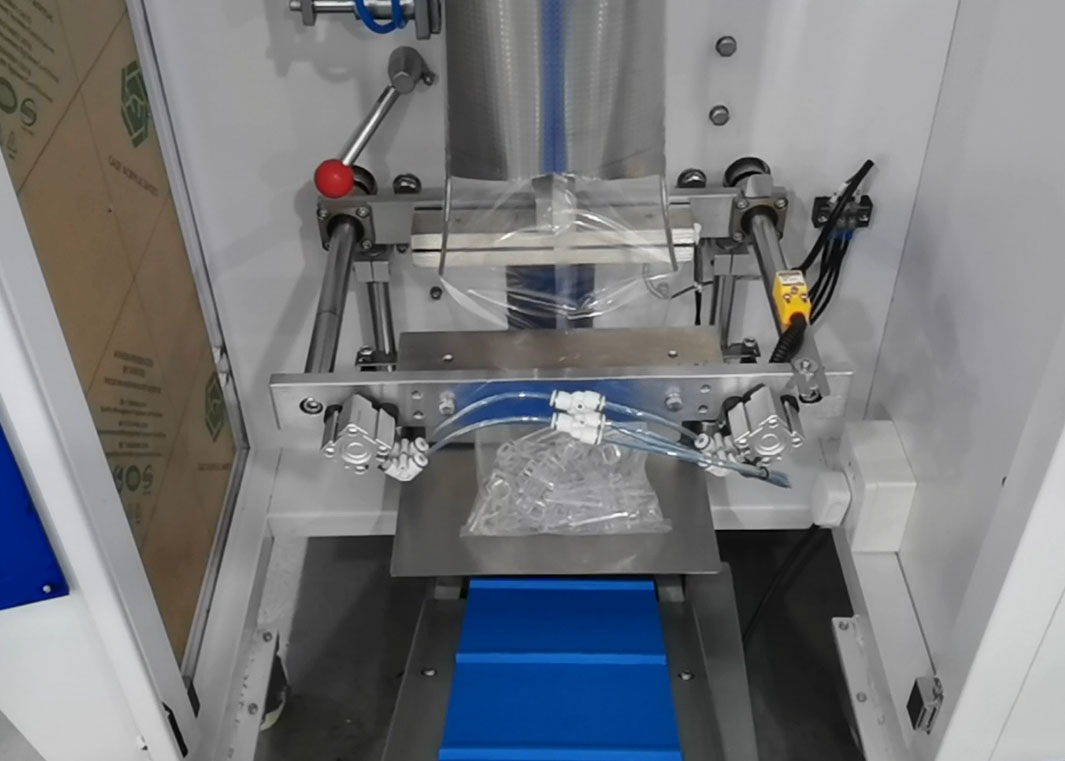

1 . The products are filled into bag, and after the sealing and cutting are completed, the finished bag is pushed out by pushing the board.
2 . The hoist conveys the packaged finished products.

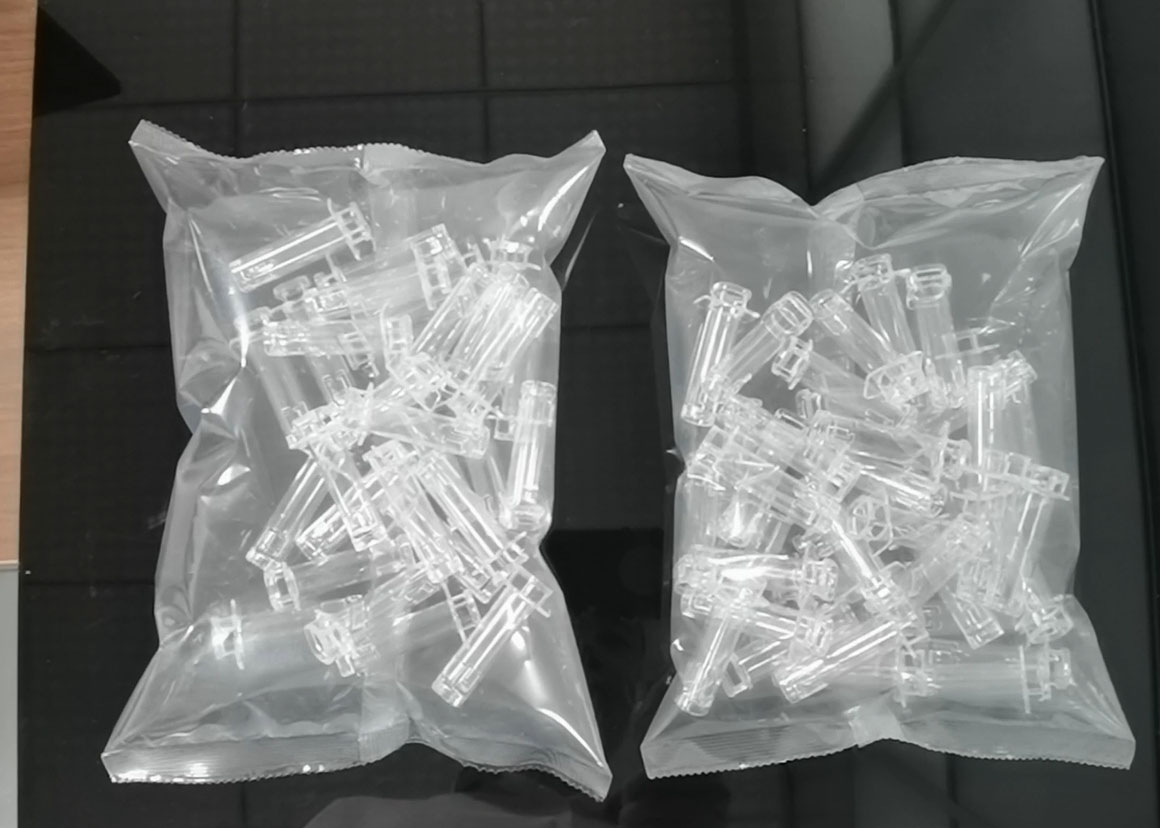

3 . The bag of the final product was beautiful and uniform, and the number was accurate.

GL-B860X Vertical Hand Throwing Packaging Machine with Automatic Sealing and Cutting for Irregular Items

Automatic Sealing Vertical Packaging Machine Hand Throwing For Irregular Items

5 , Why choose us

① . 15+ years of production experience,reliable supplier and professional team

② . 1000+ representative case,various packaging experience

③ . 1 to 1 ,after-sale service ,customer satisfaction

④ . 60+ certificate patents,mature technology

6 , Company Profile

Hongqiao Trading Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing, and marketing of various types of packaging machinery. Its main products are: screw packaging machines, hardware parts packaging machines, fastener packaging machines, and fully automatic description bag packaging. Machines, fully automatic intelligent packaging lines, etc., are widely used in furniture, bathroom, lighting, locks, auto parts, medical and industrial product packaging and other industries.

Our company has self-operated import and export rights and has very rich experience in exporting mechanical products to all over the world. Our products have passed the EU CE certification.

We always adhere to the work philosophy of innovation, meticulousness and perfection, follow the product concept of "quality first", and create more stable, intelligent, efficient and high-quality packaging machinery and equipment for domestic and foreign customers.
