Weighing Hardware Packing Machine Fully Automation Packing Equipment GL-C802 50HZ

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-C802

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Weighing complement Number packaging machine

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Counting method : Automatic

Packing speed : 1-20 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 1300*1100*1800MM

Weight (KG) : About 400 kg

Warranty : 1 year

Customed made : available

Multi-language : According to your needs

Contact Now

GL-C802 Hardware packing machine Fully Automation Packing Equipment Plastic Furniture Part Weighing

1 , Product overview:

The weighing and filling packaging machine is a device used to automatically weigh and package products. It can weigh and package products in specified quantities according to set weight requirements.

2 , Product specifications

Equipment model GL-C802
Counting method Weighing Complement Number Packing Machine
Bag size 40-230 wide and within 300
Packing speed 1-20 bags/min
Sealing shape stripe, back sealing/three side sealing (conventional back sealing)
Voltage power 220V/50HZ P≈1.5KW
Air supply 0.4-0.8MPA
Bag mouth shape figure cutter tooth shape
Dimensions 1300mm*1100mm*1800mm(L*W*H)
Weight about 400KG

GL-C802 Weighing complement Number packing machine

Weighing Hardware Packing Machine Fully Automation Packing Equipment GL-C802 50HZ

3 , Technical characteristics

1 . The vibration plate is tailor-made for packaging samples, and the weighing method is used for weighing and packaging, with an accuracy of ±1g.
2 . The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packages, seals, and outputs.
3 . Adopting an intelligent temperature control system, the temperature control is stable and the temperature can be adjusted as needed.
4 . The length of the packaging bag is adjustable, the total number of packages is adjustable, and an automatic alarm will occur when the set quantity is reached.

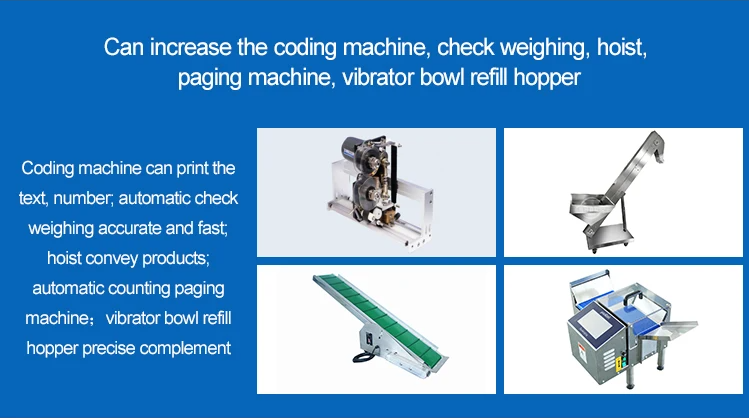

5 . After packaging, the bag shape will be uniform, regular, beautiful, and strong. It can also be equipped with coding machines, checkweighers, labeling machines, elevators and other expansion equipment.

4 , Scope of application and functional features
1 . This product is suitable for the packaging of products with large quantity requirements, such as the packaging of various granules, tablets, hardware and other items, such as screws and nuts. The packaging quantity requirements are large, such as 500 or 1000 pieces per bag. This product adopts The weighing and complementing methods are used for measurement, double-disk coarse and fine feeding, weighing first, and then the filling and counting method for packaging.
2 . Suitable for "OPP/CPP/composite membrane" as sealing material.

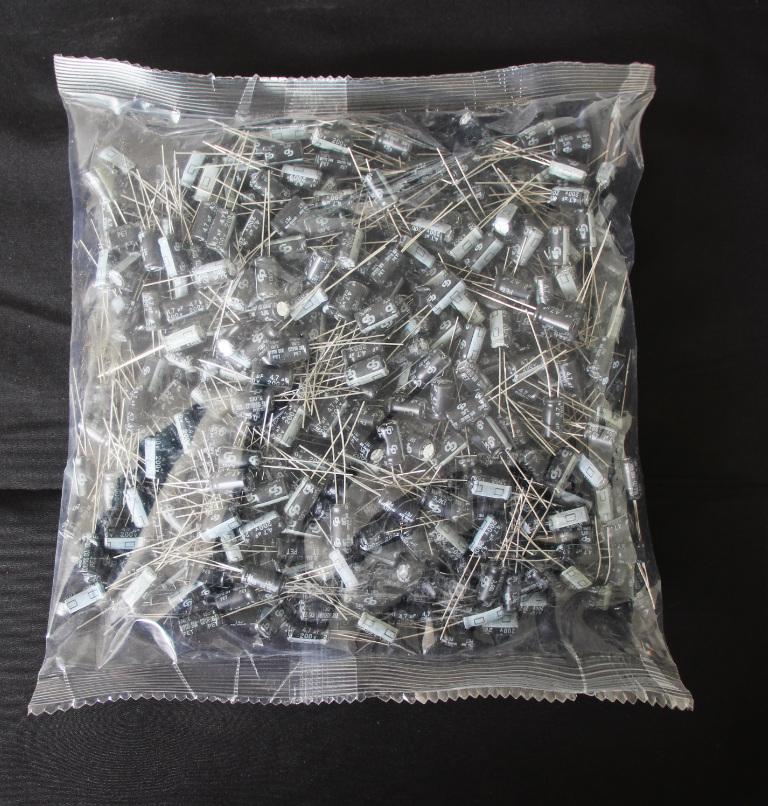

GL-C802 The final product of the packaging machine

Weighing Hardware Packing Machine Fully Automation Packing Equipment GL-C802 50HZ

5 , FAQ

Q1. How to find a packaging machine suitable for my product ?

1 . What kind of product ?
2 . Production size or bag / sachet / pouch size of you need for the product packing the length , width
3 . The weigh of each pack you need
4 . You requirement for the machines and the bag type

Q2. Are you a real factory / manufacturer ?

Of course.Our factory is inspected by third party.We much welcome you to visit us and free to pick you up from hotel For some reason you cannot visit our factory,we can use live video so that you can visit us online.

Q3. Is engineer available to serve oversea ?

Yes , we can send engineers to your factory but all the fee will be on buyers .In order to save your cost , we will send you a video of full details machine installation and assist you till the end.

Q4. How can we make sure about the machine quality after placing the order ?

Before delivery , we will check the stability of machine and share you the testing videos until you are satisfied . We will setting all the parameters well And also you can arrange for quality checking by yourself or by your contacts in China.

Q5. Can you explain me the whole transaction progress ?

1 . Sign the Contact / order on Alibaba we have trade assurance
2 . Arrange 50% deposit to our factory
3 . Factory arrange production
4 . Testing detecting the machine before shipping
5 . Inspected by customer or third party through online or site test
6 . Arrange the balance payment before shipment

Q6. Can you explain me the whole transaction progress ?

Yes . Please inform us of your final destination , we will check with our shipping agentto quote the shipping cost for your reference before delivery .
