Brand Name : Galaxybridge
Model Number : GL-B864T
Certification : CE/EMC
Place of Origin : Guangdong, China
MOQ : 1Sets
Price : Price Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 20 Set/Sets per Month
Delivery Time : 15~30 working days
Packaging Details : Packed in wooden cases
Product name : Packaging Machine
Function : Filling, Sealing, Counting, Automatic packaging
Counting mManual placementethod : Automatic
Packing speed : 1-60 bags/min
Voltage power : 220V/50HZ P≈1.5KW
Dimension(L*W*H) : 2350*1500*1550mm
Weight (KG) : About 350 kg
Warranty : 1 year
Customed made : available
Multi-language : According to your needs

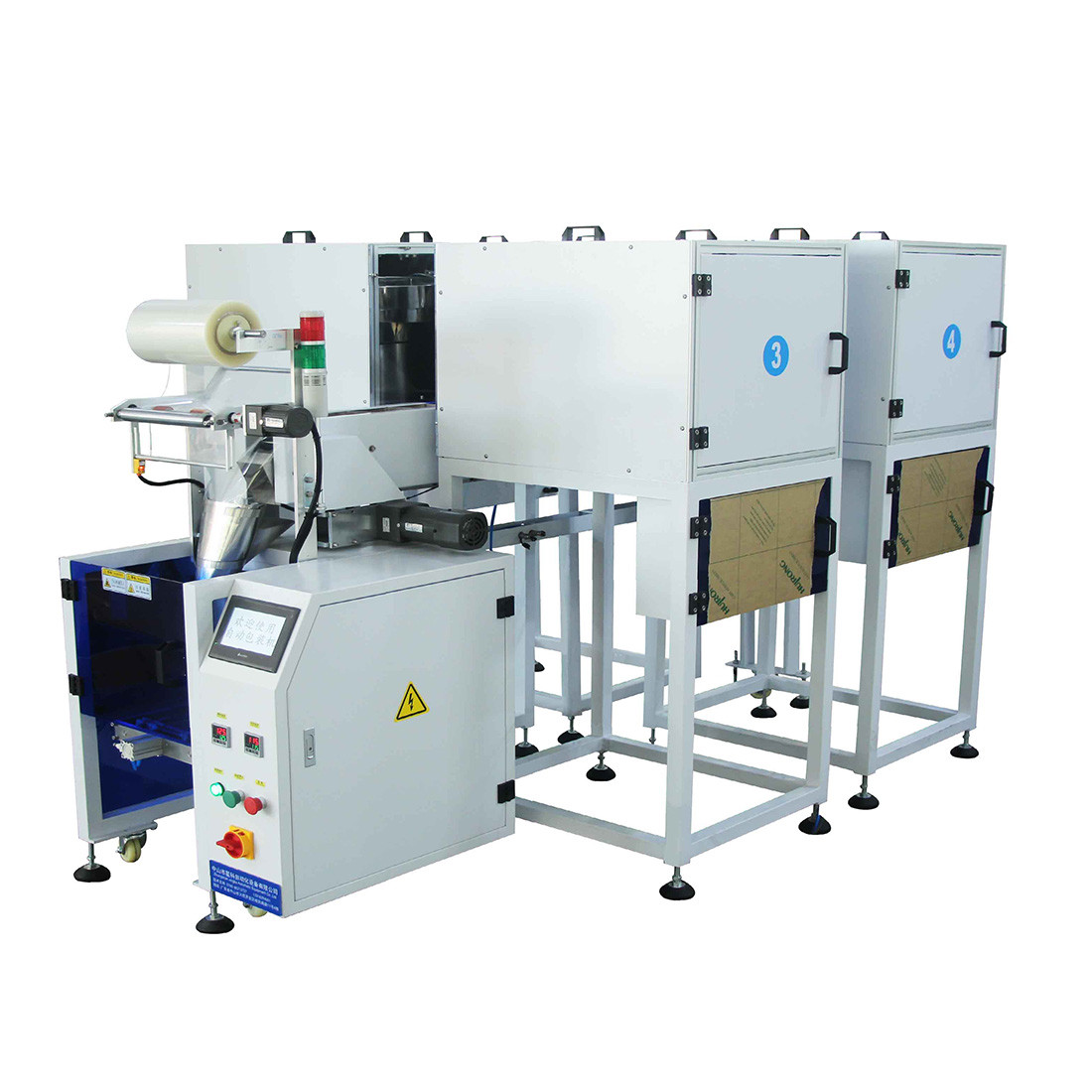

GL-B864T Packaging Machine Customizable water purifier filter with Four Vibrating Plates
1 , Product overview
Four-tray bucket packaging machines are usually equipped with advanced control systems for monitoring and controlling the entire packaging process. These systems can include PLCs (programmable logic controllers) and touch-screen interfaces that allow operators to easily set and adjust packaging machine parameters, monitor operating status, and conduct troubleshooting and troubleshooting.
Four-tray bucket packaging machines usually have production counting and statistical functions to monitor and manage the packaging process. These functions can record the packaging quantity, production speed, equipment running time and other information of each batch to help enterprises conduct production planning and production efficiency analysis.
To ensure the normal operation and long-term use of the packaging machine, regular cleaning and maintenance are necessary. This may include cleaning and replacing vibrating plates, cleaning conveyor systems and sealing devices, lubricating chains and drives, etc. Operators should follow the equipment manufacturer's recommendations for cleaning and maintenance, and regularly check the operating status of the equipment.
2 , Product specifications
Equipment model | GL-B864T |
Counting method | optical fiber counting/blocking and putting |
Bag size | width 40-140 length 200 (usually 140) |
Packing speed | 1-60 bags/min |
Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
Voltage power | 220V/50HZ P≈1.5KW |
Air supply | 0.4-0.8MPA |
Bag mouth shape | figure cutter tooth shape |
Dimensions | 2350*1500*1550mm(L*W*H) |
Weight | about 350KG |
GL-B864T Packaging Machine Customizable water purifier filter with Four Vibrating Plates
3 , Technical characteristics
1. Automatic filling, automatic packing, sealing function, output count.
2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.
4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
4 , Operating procedures
GL-B864T water purifier accessories packaging machine, the machine automatically counts and automatically fills and packs.
1 . The materials are automatically arranged by the vibrator bowl, and then put into the material box by ways of optical fiber counting and track blocking and discharging.
2 . The chain bucket drives the material box to send the material to the former.
3 . The sealing area of the equipment , automaticlly filling , and then sealed and cut off by the horizontal sealing, finally packaging.
4 . The final product was beautiful and uniform, and the number was accurate.
GL-B864T Packaging Machine Customizable water purifier filter with Four Vibrating Plates
5 , Scope of application and functional features
1.This product is suitable for automatic mixing or individual packaging of the following 4 materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment.
2.It is suitable for "OPP/CPP/ lamination film" as sealing material.
6 , FAQ
Q : Can engineers serve overseas?
A : Yes, we can send engineers to your factory, but all costs will be borne by the buyer. In order to save your cost, we will send you a complete and detailed machine installation video and provide you with full help throughout the process.
Q : How to determine the machine quality after placing an order?
A : Before delivery, we will check the stability of the machine and share the test video with you until you are satisfied. We will set all the parameters.
You can also arrange quality inspections yourself or with your contact in China.
Q : Can you explain to me how this whole deal went?
A : 1. Sign contact/order on Alibaba, we have trade assurance
2 . Arrange 50% deposit to our factory
3 . Factory arranges production
4. Test and inspect the machine before shipment
5 . Inspection by customer or third party through online or on-site testing
6 . Arrange the balance before shipment.
![]() |
