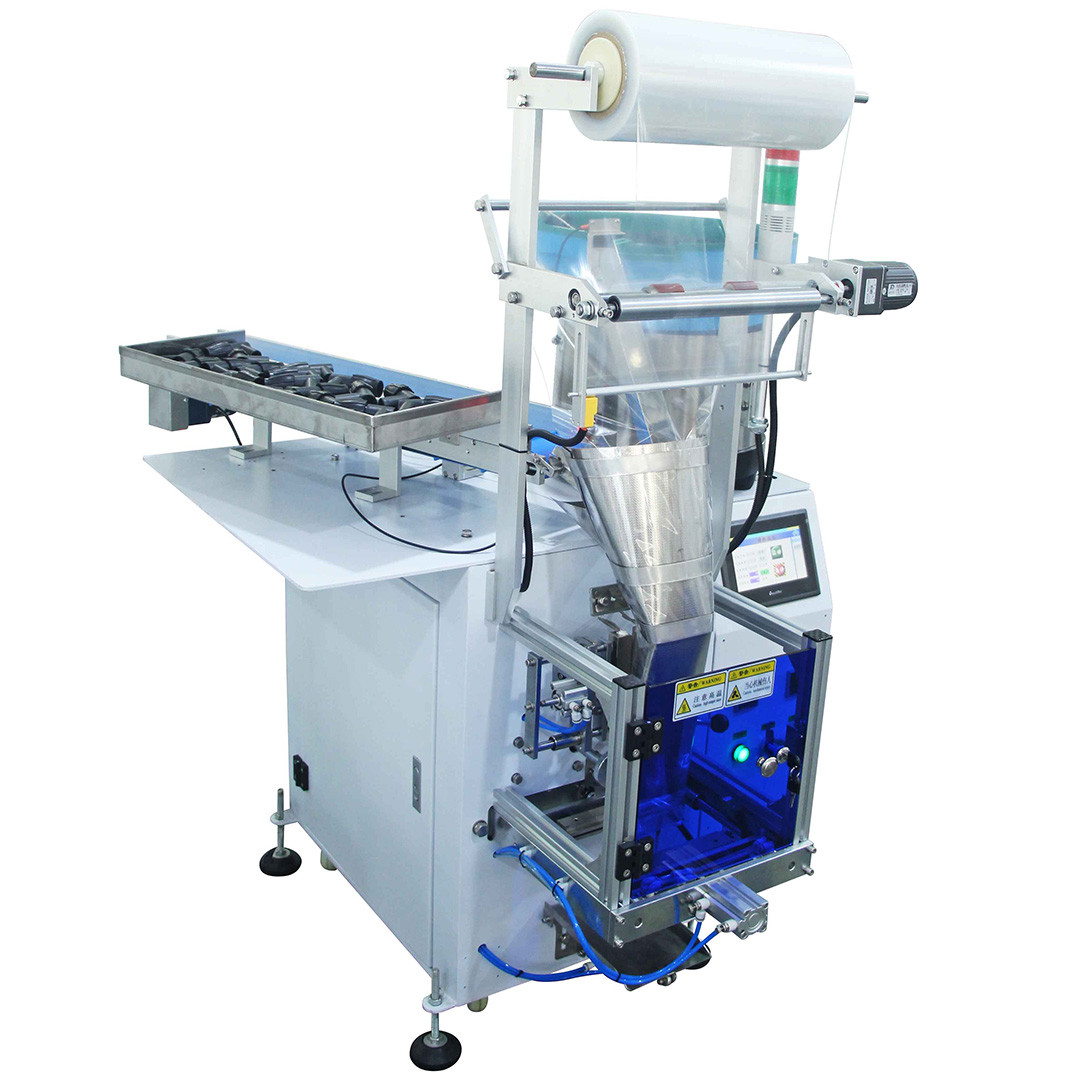

GL-B861P Semi-automatic Packaging Machine Single Tray with Conveyor Belt Two Modes Available
1 , Product overview:
The single-tray belt packaging machine is a multi-functional packaging equipment that combines two modes: single-tray automatic feeding and belt-type manual feeding to adapt to different packaging needs.
The machine uses a belt conveyor system to transport products from the feeding port to the packaging container. The belt can smoothly and continuously transport the product to the designated location, ensuring packaging accuracy and efficiency.
The single-disk belt packaging machine is suitable for various sizes and types of packaging containers, such as bags, boxes, jars, etc. You can choose the appropriate container according to the characteristics of the product and packaging requirements.
2 , Product specifications
| Equipment model | GL-B861P |
| Counting method | Automatic and semi-automatic mix |
| Bag size | width 40-140 length 200 (conventional 140) |
| Packing speed | 1-60 bags/min |
| Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
| Voltage power | 220V/50HZ P≈0.6KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | figure cutter tooth shape |
| Dimensions | 1300*1020*1550mm(L*W*H) |
| Weight | about 150KG |
GL-B861P Semi-automatic Packaging Machine Single Tray with Conveyor Belt Two Modes Available
3 , Operating procedures
XK-B861P Single Vibrating disk packaging machine, the machine automatically counts and automatically fills the packaging.
The materials are automatically arranged by the drum, counted by the optical fiber, and put into the former in the way of track stopper and material discharge.
Add a manual feeding port, place the product in tray, manual put into the belt and transmitted to the shaper.
we will see that the sealing area of the equipment , automaticlly filling , beat the bag to avoid sticking product, and then sealed and cut off by the horizontal sealing, finally packaging.

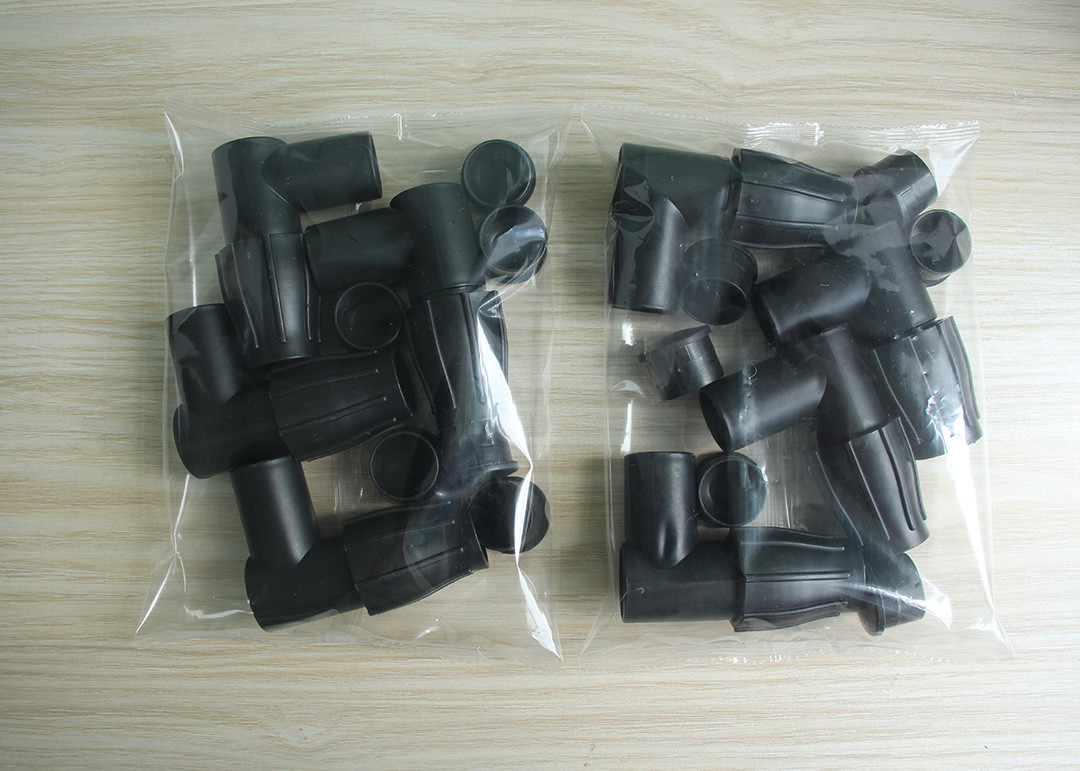

Finally we see the final product, the bag shape is beautiful, uniform, no damage, and the quantity is accurate.
4 , application
① . This product is suitable for products with long, irregular product shapes, large length and width ratios, or products that have extremely high surface requirements such as electroplating, spray painting, baking varnish and other process treatments, electroplating process plastic products, toys, bolts, screwdrivers, Data , etc., using manual material input, belt conveying material to the forming machine, automatic filling and packaging.
② . It is suitable for "OPP/CPP/ lamination film" as sealing material.
GL-B861P Semi-automatic Packaging Machine Single Tray with Conveyor Belt Two Modes Available
5 , Fast delivery
① . upon receipt of payment, delivery date will be in 15~30 working days .
② . by Air,Sea or Express.
③ . Shipment cost will depend on the destination,shipment way and the weight of the goods.
6 , FAQ
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3. The weight of each package you need.
4. Your requirements for machine and bag type.
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3 . The weight of each package you need.
4 . Your requirements for machine and bag type.
