W350 Horizontal Caster Packaging Machine

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

W350 Horizontal Caster Packaging Machine

  • 1
  • 2
  • 3

Brand Name : Galaxybridge

Model Number : W350

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Negotiable

Supply Ability : 50 Set/Sets per Month

Delivery Time : To be negotiated

Packaging Details : Packed in wooden cases

Packaging Material : Plastic, Paper, Metal

Weight (KG) : 600

Dimension(L*W*H) : length 1700mm/ width 750mm/ height 1550mm

Packing speed : 1-60 bags/min

Bag mouth shape : figure cutter tooth shape

Voltage : 220V/50HZ P≈0.6KW

Contact Now

W350 Horizontal Caster Packaging Machine

1)Technical features

1. Servo control, the length of the bag is adjustable, saving time and film.

2. Fault self-diagnosis and alarm display.

3. HMI operation and parameter setting are simple and convenient.

4. The temperature is independently controlled and can be adjusted according to needs, which is better suitable for various material packaging.

5. The transmission system is simple and clear, the work ability is reliable, and the maintenance is convenient.

6. High-sensitivity photoelectric color code tracking, more accurate sealing and cutting, and additional ventilation holes.

7. Item induction to prevent empty bags.

8. The manual is automatically issued.

9. Automatic feeding of tape.


2) Scope of application

1. It is suitable for the packaging of various regular objects such as casters, manuals, playing cards, daily necessities, workpiece parts, masks, hotel supplies, disposable tableware, furniture accessories, and other cartons or trays.

2. It is suitable for"OPP/CPP/Lamination film" as sealing material.

W350 Horizontal Caster Packaging Machine
Detailed parameters of the product
Model W350
Product name Horizontal Caster Packaging Machine
Voltage power 220V/50HZ P~0.6KW
Air Supply 0.4-0.8MPA
Bag mouth shape Figure ctter tooth shape
Weight About 100G
Dimensions L1700mm*W750mm*H1550mm
Packing speed 60bag/min
Sealing shape Stripe,back seal/three side seal(usually back seal)
Bag size Width50-350, adjustable length
Counting mode Optical flber counting/blocking and putting

3)PRDUCT CERTIFICATIONS
W350 Horizontal Caster Packaging Machine

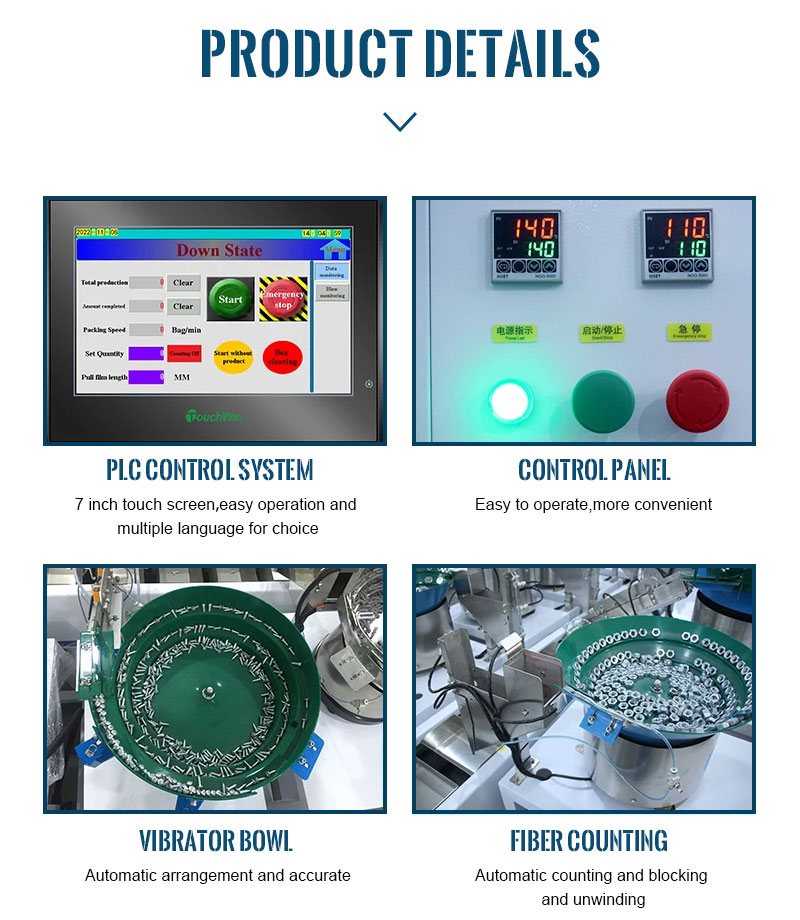

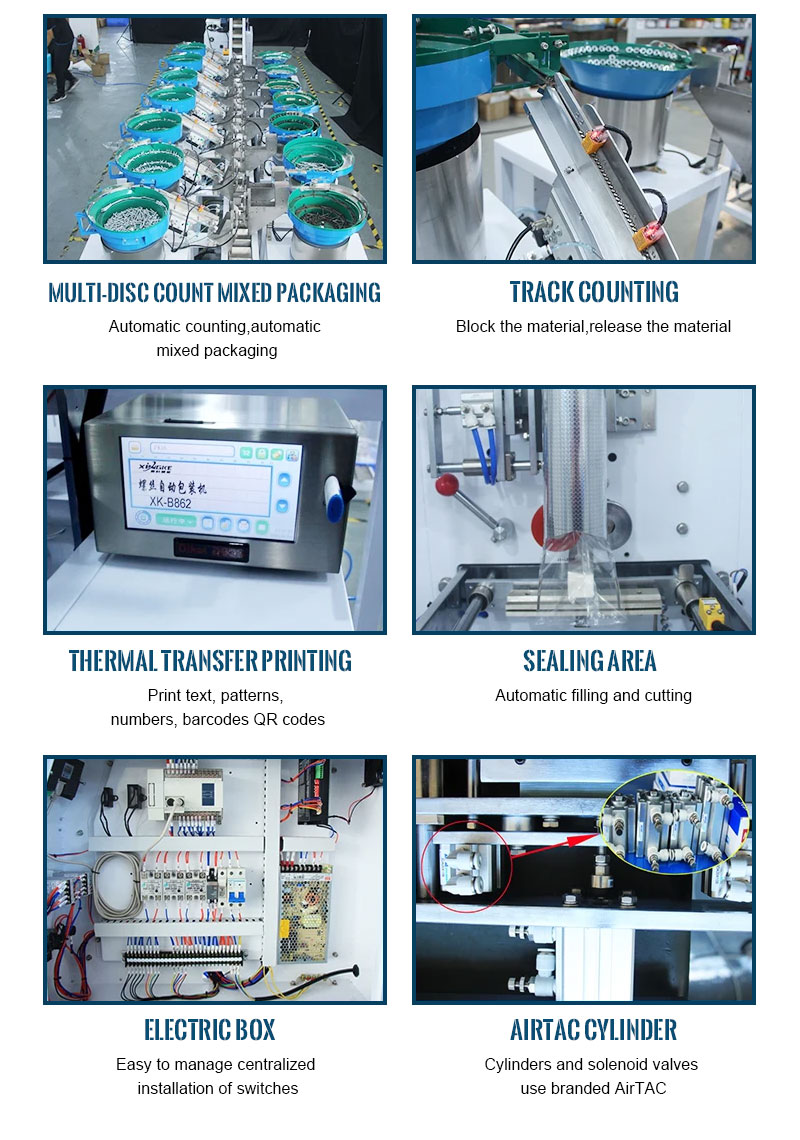

4)PRODUCT DETAILS

W350 Horizontal Caster Packaging Machine

W350 Horizontal Caster Packaging Machine

5)TRANSPORTATION

For different customer needs, we can provide customer satisfaction of the mode of transport.

W350 Horizontal Caster Packaging Machine

FAQ

Q1.How to find a packaging machine suitable for my product?

1. what kind of product?

2. Production size or bag/sachet/pouch size you need for the product packing the length, width

3. The weight of each pack you need

4. Your requirement for the machines and the bag type

Q2.Are you a real factory/manufacturer?

Of course.Our factory is inspected by a third party. We would highly welcome your visit and provide complimentary pick-up from your hotel.

In case you are unable to visit our factory due to certain reasons, we can arrange a real-time video session so that you can have an online

tour of our facilities.

Q3.Can engineers provide services overseas?

Yes,we can send engineers to your factory, but all the expenses will be borne by the buyer. To save your costs, we will send you detailed

videos of the machine installation and assist you in completing the installation.

Q4.How can we make sure about the machine quality after placing the order?

Before delivery, we will check the stability of machine and share you the testing videos until you are satisfied. setting all the parameters well

And also you can arrange for quality checking by yourself or by your contacts.

Q5.Can you explain the progress of the whole transaction to me?

1. Arrange 50% deposit to our factory

2. Factory arranges production

3. Testing detecting the machine before shipping

4. Inspected by the customer or a third party through online or site test

5. Arrange the balance payment before shipment

Q6.Can you explain to me the whole transaction progress?

Yes, Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost reference before delivery.
