CE Horizontal Packing Machine Card Issuance Sealing Pillow Packaging Machine

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

CE Horizontal Packing Machine Card Issuance Sealing Pillow Packaging Machine

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-W350X+FK200

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Pillow Packaging Machine

Function : Automatic packaging

Counting mManual placementethod : Automatic

Packing speed : 1-100 bags/min

Voltage power : 220V/50HZ P≈2.5KW

Dimension(L*W*H) : 4500*1200*1300mm

Weight (KG) : About 700 kg

Warranty : 1 year

Customed made : available

Multi-language : According to your needs

Contact Now

Automatic Card Issuance Sealing and Packaging Machine High Efficiency for Instructions

1 , Product overview

The automatic card issuance, sealing and packaging machine realizes the automated card issuance process, greatly reducing the need for manual operations. By setting the quantity and sequence, the card issuing machine can accurately automatically send out instructions, warranty cards and other types of products as required, improving production efficiency and consistency.
Packaging machines usually have an indicator light system to indicate the operating status of the machine. When the green indicator light comes on, it means that the card issuance machine is ready to start the automatic card issuance and sealing process. This automation feature makes operation easier and reduces the need for manual intervention.
This equipment has a wide range of applications in various industries such as electronics manufacturing, medical equipment, office supplies, etc.

2 , Product specifications

Equipment model GL-W350X+FK200
Counting method

manual placement/photo-eye positioning

Bag size

width 50-350, adjustable length

Packing speed 1-100 bags/min
Sealing shape

stripe, back seal

Voltage power 220V/50HZ P≈2.5KW
Air supply 0.4-0.8MPA
Bag mouth shape figure cutter tooth shape
Dimensions 4500*1200*1300mm(L*W*H)
Weight about 700KG

Automatic Card Issuance Sealing and Packaging Machine High Efficiency for Instructions

CE Horizontal Packing Machine Card Issuance Sealing Pillow Packaging Machine

3 , Technical characteristics

1 . Servo control, adjustable bag length, saving time and film.

2 . Fault self-diagnosis and alarm display.

3 . Man-machine interface operation, parameter setting is simple, convenient and quick.

4 . Temperature independent control, can be adjusted according to needs, better suitable for all kinds of material packaging.

5 . The transmission system is simple and clear, the work ability is reliable, and the maintenance is convenient.

6 . High sensitivity photoelectric color code tracking, sealing and cutting more accurate.

7 . Goods sensing to prevent empty bags.

4 , Operating procedures

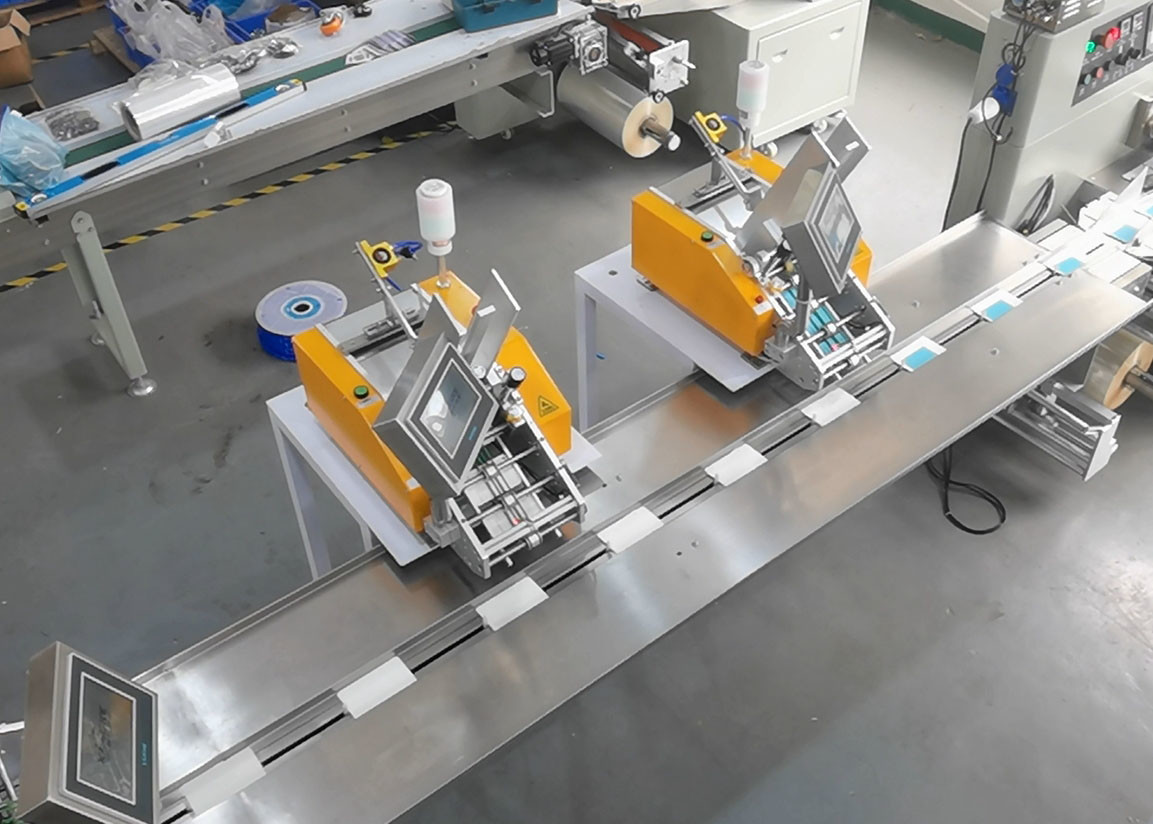

GL-W350X+FK200 Automatic paging and sealing packaging machine suitable for manuals and warranty cards various regular products
The 3 paging machines, paging according to the setting method.
The paging machine 1 can put the manual.The paging machine 2 can put the certificate on the manual.
The paging machine 3 put the warranty card on them again.
When the green indicator light is on, each automatic paging machine will automatically send out the corresponding manual or warranty card according to the set quantity and send it to the conveyor belt of the packaging machine,which is driven by the chain.
The product is delivered to the sealing area to automatically fill the package
After the packaging is completed, the product is flattened by a brush and sent to the discharge conveyor belt, and transferred to the next station or transfer box.

Automatic Card Issuance Sealing and Packaging Machine High Efficiency for InstructionsCE Horizontal Packing Machine Card Issuance Sealing Pillow Packaging Machine

5 ,Why choose us

① ,15+ years of production experience,reliable supplier and professional team

② ,1000+ representative case,various packaging experience

③ ,1 to 1 ,after-sale service ,customer satisfaction

④ ,60+ certificate patents,mature technology

6 , FAQ

Q : Are we worried that you won't send the machine to us after we pay?

A : We have business license and certificate. We can use Alibaba Trade Assurance service to protect your money and machine quality and delivery are guaranteed.

Q : Can engineers serve overseas?

A : Yes, we can send engineers to your factory, but all costs will be borne by the buyer. In order to save your cost, we will send you a complete and detailed machine installation video and provide you with full help throughout the process.
