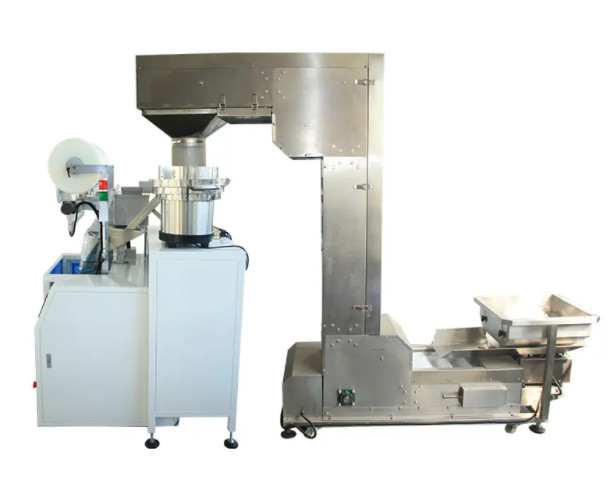

Vertical Counting Manual Feeding Chain Bucket Type Hardware Bag Sealing Packing Machine
XK-C802Z(Weighing complement number packing machine + hoist)
1)Technical characteristics
1. The vibration plate tailored for the packaging sample can be weighed and packed by weighing method with the accuracy of ±1g
2.Vibration plate automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.
3.the vibration plate is short of material after feeding conveyor belt automatic supply
4. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
5.The length of packaging bag is adjustable, the total number of packaging is adjustable, and the automatic alarm is given when the set number is reached.
6. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check and reweigh, labeling machine, hoist and other expansion equipment.
2)Scope of application and functional features

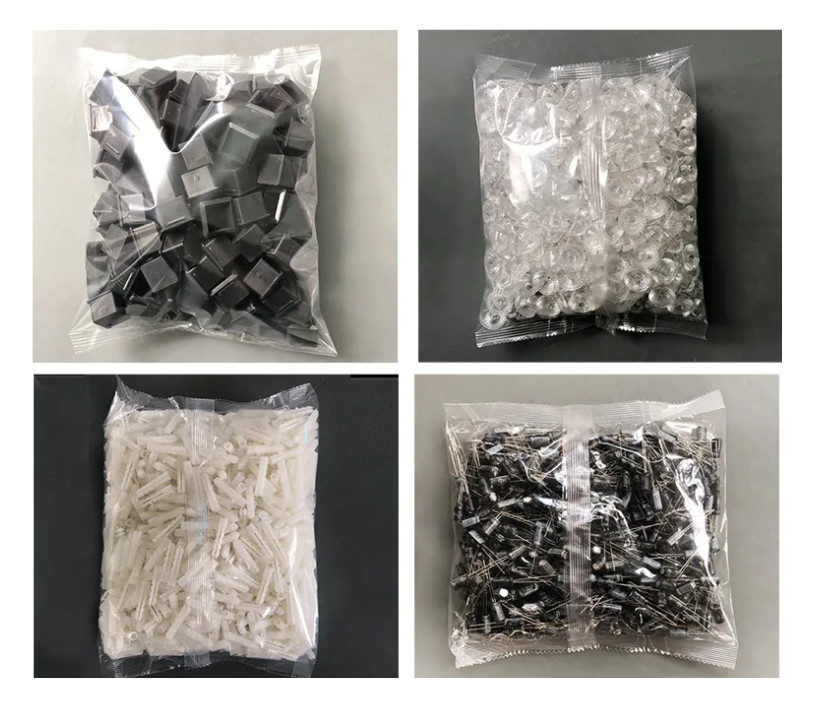

1. This product is suitable for the quantity required more product packaging, all kinds of particles, tablets, hardware items such as packaging, such as screw, nut, number of packages require more, cases of 500100 a bag, this product USES weighing complement way measurement, double disk thick, diligence, weighing, first complement way after packing.
2. It is suitable for "OPP/CPP/ composite membrane" as sealing material.
Product specifications
| Equipment model | GL-B862Z |
| Packaging Material | Plastic, Paper, Metal, Glass, Wood, CPP |
| Bag size | length Within 300 mm |
| Warranty | 1 years |
| Type | Multi-Function Packaging Machine |
| Voltage power | 220V/50HZ P≈0.6KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | Pattern knife tooth shape |
| Dimensions | L1800*W1850*H1900(mm) |
| Weight | about 400KG |
