Multi Function Packaging Machine Electric Automatic Box Sealer ODM

GL-FL500C Adjustable Top Bottom Multi Function Automatic Tape Electric Stable Automatic Cartons Boxes Box Sealer

1 , Product description:

This product can be folded and sealed automatically. The sealing machine adopts belt conveyor and powered roller. The size of the countertop can be customized according to customer needs. Applicable to multiple industries.

2 , Product specifications

Automatic folding and sealing machine

3 , Technical characteristics

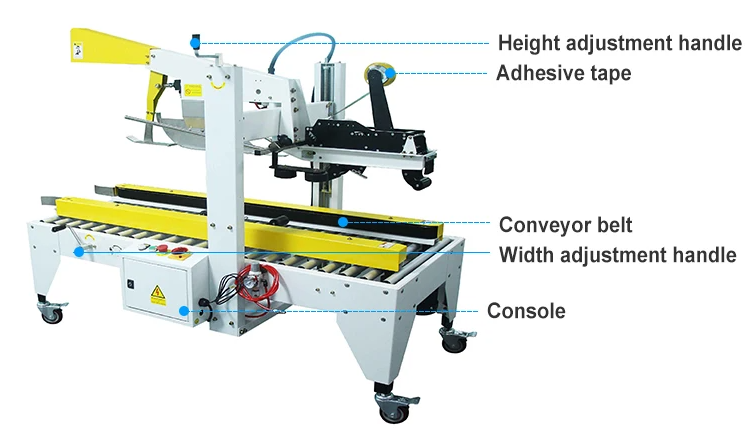

1 The transmission mode adopts the lower two side belt drive, which can be wired or operated in a single machine. The upper cover is automatically folded, and the upper and lower one is sealed at one time.

2 Adjust the height and width manually when changing specifications.

3 The sealing machine adopts belt conveyor and power drum.

4 Worktable can be customized according to customer requirements.

5 Electrical configuration: French "Schneider" is used as the contactor, Taiwan "Yadeke" as the pneumatic component, and Taiwan "as the motor.

6 Minimum carton size: 200mm long/120mm wide/120mm high,Maximum carton size: 600mm long/500mm wide/600mm high.

4 ,Scope of application and functional features

1 This product is suitable for carton packaging of food, pharmaceutical and chemical products, electronic products, printed products, toys, furniture, bathroom lighting and other products, such as carton, carton, door panel, glass, and hardware frame. This model is mainly used for carton packaging.

2 Suitable for kraft paper tape and BOPP tape.

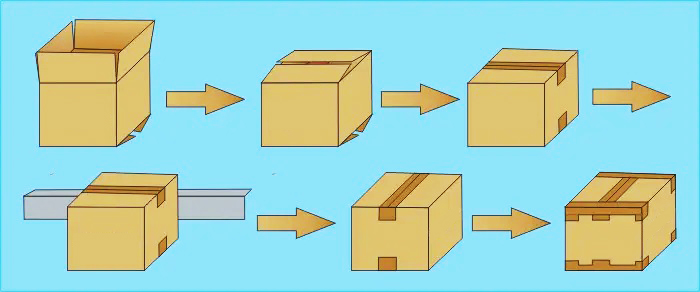

5 , Flow chart of sealing machine

1 Push the sealing machine after packing

2 Automatic folding cover, sealing cover and bottom cover

3 Automatically enter the side sealing step

4 Enter the sealing corner structure

5 Fold the edge of the tape with the brush

6 The box is sealed and delivered

5 , Company Profile

Hongqiao Trading Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing, and marketing of various types of packaging machinery. Its main products are: screw packaging machines, hardware parts packaging machines, fastener packaging machines, and fully automatic description bag packaging. Machines, fully automatic intelligent packaging lines, etc., are widely used in furniture, bathroom, lighting, locks, auto parts, medical and industrial product packaging and other industries.

Our company has self-operated import and export rights and has very rich experience in exporting mechanical products to all over the world. Our products have passed the EU CE certification.

We always adhere to the work philosophy of innovation, meticulousness and perfection, follow the product concept of "quality first", and create more stable, intelligent, efficient and high-quality packaging machinery and equipment for domestic and foreign customers.

6 , FAQ

Q1. How to find a packaging machine suitable for my product ?
1 . What kind of product ?
2 . Production size or bag / sachet / pouch size of you need for the product packing the length , width
3 . The weigh of each pack you need
4 . You requirement for the machines and the bag type

Q2. Are you a real factory / manufacturer ?
Of course.Our factory is inspected by third party.We much welcome you to visit us and free to pick you up from hotel For some reason you cannot visit our factory,we can use live video so that you can visit us online.

Q3. Is engineer available to serve oversea ?
Yes , we can send engineers to your factory but all the fee will be on buyers .In order to save your cost , we will send you a video of full details machine installation and assist you till the end.

Q4. How can we make sure about the machine quality after placing the order ?
Before delivery , we will check the stability of machine and share you the testing videos until you are satisfied . We will setting all the parameters well And also you can arrange for quality checking by yourself or by your contacts in China.

Q5. Can you explain me the whole transaction progress ?
1 . Sign the Contact / order on Alibaba we have trade assurance
2 . Arrange 50% deposit to our factory
3 . Factory arrange production
4 . Testing detecting the machine before shipping
5 . Inspected by customer or third party through online or site test
6 . Arrange the balance payment before shipment
Q6. Can you explain me the whole transaction progress ?
Yes . Please inform us of your final destination , we will check with our shipping agentto quote the shipping cost for your reference before delivery .

For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.
