5KW Automatic Packing Machine GL-B862C Sealing For Hardware Accessories Screws

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

5KW Automatic Packing Machine GL-B862C Sealing For Hardware Accessories Screws

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B862C

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Automatic Packaging Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : automatic

Packing speed : 1-20 bags/min

Voltage power : 220V/50HZ P≈5KW

Dimension(L*W*H) : 1300*1100*1800mm

Weight (KG) : About 450kg

Warranty : 1 year

Contact Now

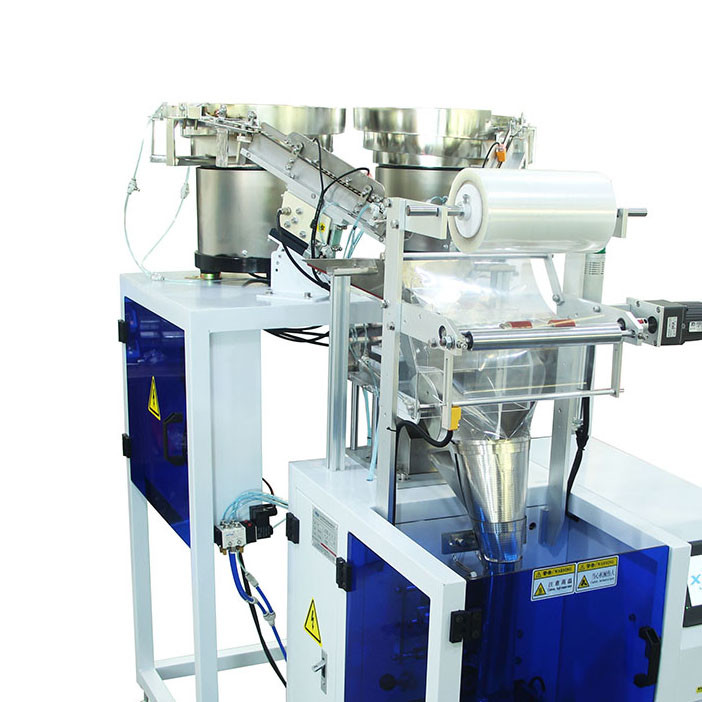

GL-B862C Double Disc Automatic Packaging Machine Easy to Operate for Hardware Accessories Screws

1 , Product overview

The weighing and screening double-disc screw packaging machine combines automatic packaging, precise measurement and screening functions, and is suitable for the packaging needs of large quantities of screws and other products. By using efficient packaging methods and high-quality sealing materials, production efficiency and product quality can be improved to meet the packaging requirements of various industries.
The packaging machine has a screening function that can screen screws by weighing. It can detect the weight of screws and separate qualified and unqualified screws according to the set weight range. This ensures that only screws of the specified weight are packaged, improving product quality and consistency.
The equipment is fully automated with automatic arranging, counting, filling and sealing functions. Once the machine's parameters are set, it will automatically perform the entire packaging process, reducing the need for manual operations and improving production efficiency and consistency.
The equipment adopts an intelligent temperature control system, which can stably control the sealing temperature. This ensures sealing quality and consistency and avoids sealing problems caused by temperature instability.

2 , Product specifications

Equipment model GL-B8612C
Counting method

weighing complement number

Bag size width 40-230 length 300
Packing speed

stripe, back seal/three side seal (usually back seal)

Voltage power 220V/50HZ P≈5KW
Air supply 0.4-0.8MPA
Bag mouth shape figure cutter tooth shape
Dimensions 1300*1100*1800mmL*W*H)
Weight about 150KG

GL-B862C Double Disc Automatic Packaging Machine Easy to Operate for Hardware Accessories Screws5KW Automatic Packing Machine GL-B862C Sealing For Hardware Accessories Screws

3 , Technical characteristics

1. The vibrator bowl tailored for the packaging sample can be weighed and packed by weighing method with the accuracy of ±1g

2. Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.

3. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

4. The length of packaging bag is adjustable, the total number of packaging is adjustable, and the automatic alarm is given when the set number is reached.

5 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

4 , operation process

GL-B862C weighing and selecting 2 vibrator blows screw packaging machine, adopts weighing method to measure and screen the unqualified quantity. The equipment can automatically code, seal and cut.
1 . The vibrator blow automatically arranges the screws.
2 . The screw passes through the track to automatically hoard the prodcut, and the product is counted by the air cylinder to block, and the product is discharged according to the set quantity.
3 . After the screws are discharged, they enter the weighing and selecting mechanism for choosing, and the qualified flow to the packaging machine for packaging, and the ones that do not reach the qualified quantity are rejected to the box
4 . Screws not meeting the set weight will be transported to the back of the machine for placement.
5 . Open the safety door, we will see that the equipment sealing area , the material is automatically filled, the horizontal sealing is then sealed and cut, and the packaging is completed.
6 . The packaged product is lifted and unloaded through the tray, and the function of beating materials can also be added.

GL-B862C Double Disc Automatic Packaging Machine Easy to Operate for Hardware Accessories Screws

5KW Automatic Packing Machine GL-B862C Sealing For Hardware Accessories Screws

5 , Scope of application and functional features

1 . This product is suitable for the quantity required more product packaging, all kinds of particles, tablets, hardware items such as packaging, such as screw, nut, number of packages require more, cases of 500pcs or 1000pcs a bag. This product is measured by weighing and packed by selecting the unqualified quantity.

2 . It is suitable for "OPP/CPP/ lamination film" as sealing material.

6 , our service

We have perfect service system:

Before sales Services

①,many professional packing videos,give you direct feeling about our machines.

②,free packing solution from our R&D department.

In sales Service

We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After sales Service

①,Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .

②,The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .

③,If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available
