Chain Bucket Type Automatic Packaging Machine High Efficiency with Four Vibration Plates
1 , Product overview
The four-tray bucket packaging machine realizes efficient packaging of small materials such as water purifier accessories through automatic counting, automatic filling and sealing operations. It increases packaging speed, reduces the need for manual handling, and ensures packaging quality and consistency. This type of packaging machine is often used in production lines and can meet the needs of large-scale production and packaging.
The material is automatically filled into bags or containers within the sealing area. The filling method can be to pour the material directly into the packaging bag, or to send the material into the bag through a pressing device.
After filling is completed, the equipment will perform a horizontal sealing operation, that is, sealing above and below the packaging material to seal the material in the bag.
After completing the horizontal sealing, the equipment will perform a re-sealing operation, that is, additional sealing is performed above and below the material to ensure the sealing of the package. The machine then uses a cutter or cutting device to cut off the sealed packaging bags to form independent packaging units.
After the sealing and cutting operations, the packaging process is completed to form an independent packaging unit, such as bagged water purifier accessories. These packaging units can continue to the next step of packaging processing, such as cartoning, labeling, etc.
2 , Product specifications
| Equipment model | GL-B864T |
| Counting method | optical fiber counting/blocking and putting |
| Bag size | width 40-140 length 200 (usually 140) |
| Packing speed | 1-60 bags/min |
| Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
| Voltage power | 220V/50HZ P≈1.5KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | figure cutter tooth shape |
| Dimensions | 2350*1500*1550mm(L*W*H) |
| Weight | about 350KG |
Four-tray Drag Bucket Packaging Machine for Mixed Product Packaging with PLC Intelligent System
3 , Technical characteristics
1. Automatic filling, automatic packing, sealing function, output count.
2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.
4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
4 , Operating procedures
GL-B864T water purifier accessories packaging machine, the machine automatically counts and automatically fills and packs.

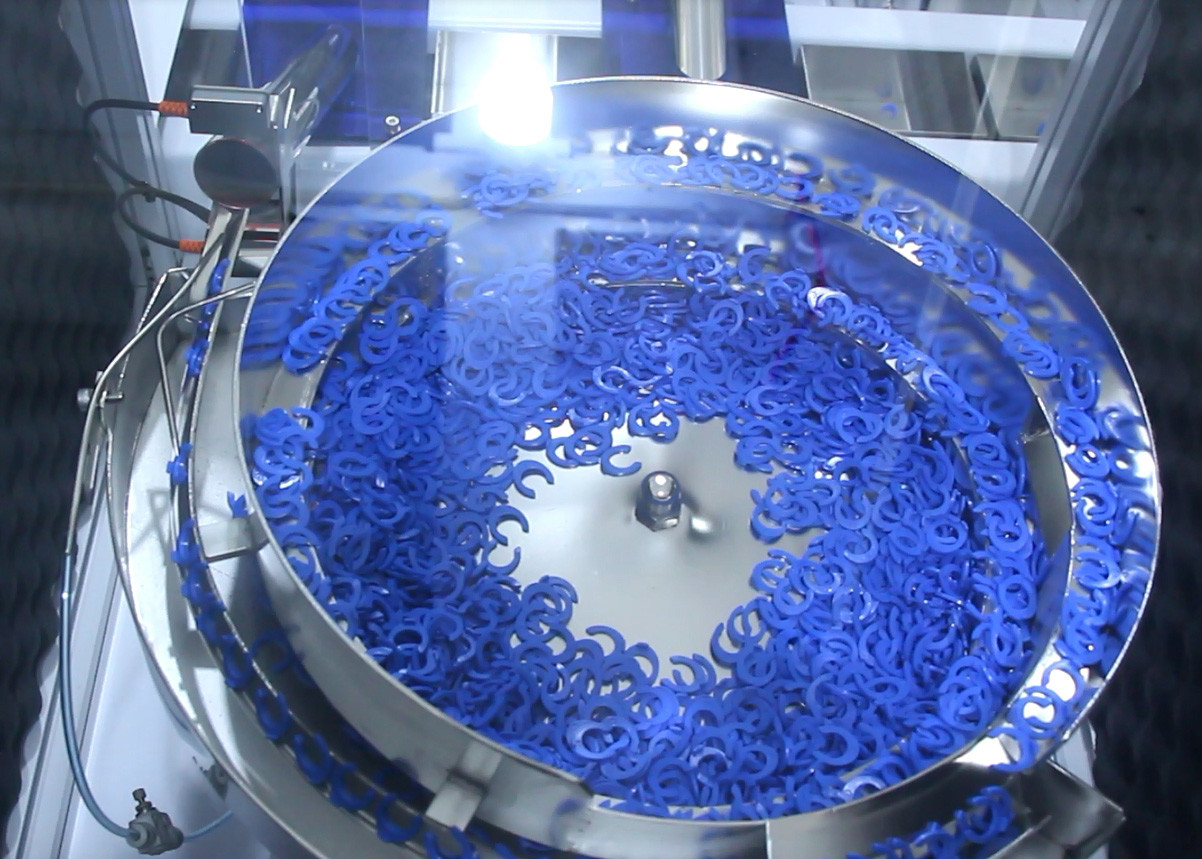

1 . The materials are automatically arranged by the vibrator bowl, and then put into the material box by ways of optical fiber counting and track blocking and discharging.
2 . The chain bucket drives the material box to send the material to the former.
3 . The sealing area of the equipment , automaticlly filling , and then sealed and cut off by the horizontal sealing, finally packaging.
4 . The final product was beautiful and uniform, and the number was accurate.
Four-tray Drag Bucket Packaging Machine for Mixed Product Packaging with PLC Intelligent System
5 , Scope of application and functional features
1.This product is suitable for automatic mixing or individual packaging of the following 4 materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment.
2.It is suitable for "OPP/CPP/ lamination film" as sealing material.
6 , FAQ
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3. The weight of each package you need.
4. Your requirements for machine and bag type.
Q : Are you a real factory/manufacturer?
A : Of course. Our factory is third party inspected. We welcome you and pick you up from your hotel for free.
For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.
