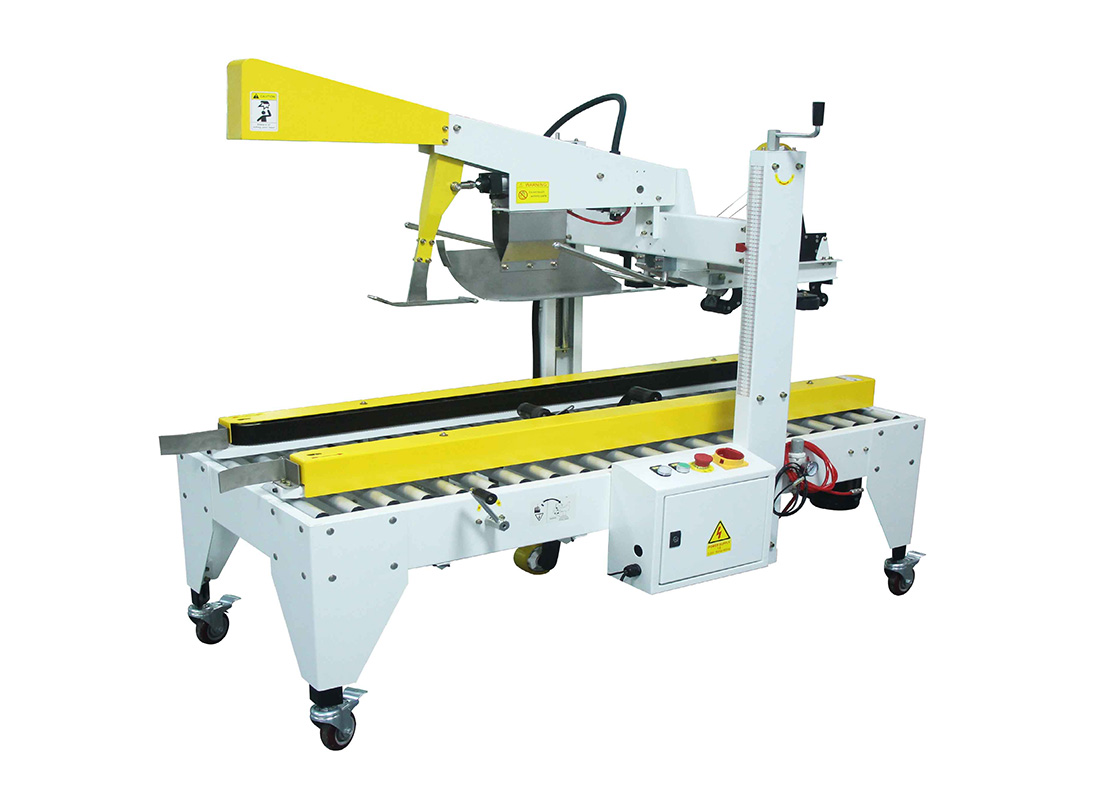

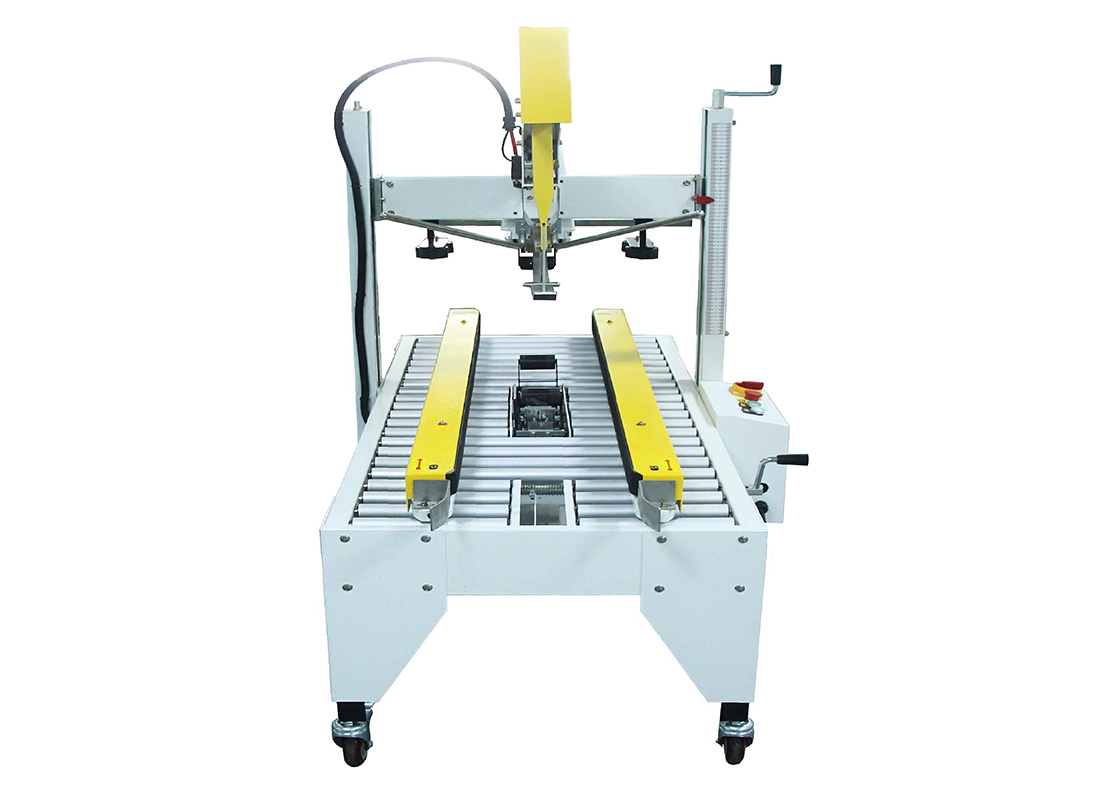

GL-FX500C Automatic Carton Sealing Machine with Precise Sealing for Carton Packaging
GL-FX500C Automatic Carton Sealing Machine With Precise Sealing For Carton Packaging
1 , Product overview
The automatic carton sealing machine is a device used for automatic carton sealing. It can realize automatic folding and top-to-bottom sealing of cartons.
The operator pushes the material onto the roller, and the belts on both sides drive the rollers to push the carton away. This design makes it easier to push materials, and through the driving of the roller, the carton can maintain stable movement during the sealing process.
The automatic carton sealing machine has the function of automatically folding the cover and can automatically fold the cover of the carton. At the same time, the machine can also achieve upper and lower sealing operations, that is, sealing operations on the upper and lower parts of the carton at the same time. This method can improve the efficiency of sealing and reduce the number of processes.
2 , Product specifications
| Equipment model | GL-FX500C |
| Counting method | automatic |
| Carton specification length | Minimum carton specifications: L200mm/W 120mm/H120mm,
Maximum carton specifications: L 600mm/W500mm/H 600mm. |
| Packing speed | 800~900 boxes/hour |
| Conveying method | belt + roller |
| Voltage power | 220V/50Hz/60Hz/1Ph or 380V/50Hz/60Hz/3Ph |
| Use air source | 3kgf/cm² 100nl/min |
| Power consumption | Maximum 0.2KW |
| Dimensions | 3950*2900*1600mm(L*W*H) |
| Weight | about 180KG |
GL-FX500C Automatic Carton Sealing Machine with Precise Sealing for Carton Packaging
3 , Technical features
1 . The transmission mode is driven by belts on both sides of the lower side. It can be wired or operated by a single machine. The upper cover can be folded automatically and the upper and lower boxes can be sealed in one go.
2 . Manually adjust the height and width when changing specifications.
3 . The carton sealing machine adopts belt conveyor and power roller.
4 . The work surface can be customized according to customer requirements.
5 . Electrical configuration: the contactor is from France's "Schneider", the pneumatic components are from Taiwan's "Yadeke", and the motor is from "Taibang".
6 . Minimum carton specifications: length 200mm/width 120mm/height 120mm,
Maximum carton specifications: length 600mm/width 500mm/height 600mm.
4 , Scope of application
1 . This product is suitable for carton packaging of food, pharmaceutical chemicals, electronic products, printed matter, toys, furniture, bathroom lighting and other products. For example, it is suitable for cartons, cartons, door panels, glass, and hardware frames. This model is mainly used for carton packaging.
2 . Suitable for kraft paper tape and BOPP tape.
GL-FX500C Automatic Carton Sealing Machine with Precise Sealing for Carton Packaging
5 , Operating procedures
GL-FL500C automatic carton sealing machine can automatically fold the lid and seal the carton top to bottom.
The materials are manually pushed onto the roller, and the belts on both sides drive the rollers to push the carton away. The cover is automatically folded, and the upper and lower sealing is completed in one go.
The pressure wheels on both sides of the carton are fixed and pressed tightly so that the carton will not shake when gluing is applied. After the gluing is completed, the tail brush brushes the gluing area to make the tape fit the carton more closely.
Finally, the upper and lower seals of the carton are sealed, and the sealing is accurate, beautiful, and wrinkle-free.
5 , FAQ
Q : Can you explain to me how this whole deal went?
A : 1. Sign contact/order on Alibaba, we have trade assurance
2 . Arrange 50% deposit to our factory
3 . Factory arranges production
4 . Test and inspect the machine before shipment
5 . Inspection by customer or third party through online or on-site testing
6 . Arrange the balance before shipment.
