I Shaped Carton Sealing Machine ODM Horizontal Carton Packing Machine

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

I Shaped Carton Sealing Machine ODM Horizontal Carton Packing Machine

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-FX500T

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Automatic Carton Sealing Machine

Function : Carton packaging

Counting mManual placementethod : Automatic

Sensing method : Horizontal

Packing speed : 360~600 boxes/hour

Voltage power : 220V/50Hz/60Hz/1Ph or 380V/50Hz/60Hz/3Ph

Dimension(L*W*H) : 3950*2900*1600mm

Weight (KG) : About 700 kg

Warranty : 1 year

Customed made : Available

Contact Now

GL-FX500T Automatic Carton Sealing Machine Beautifully without Wrinkles

GL-FX500T Automatic Carton Sealing Machine Beautifully Without Wrinkles

1 , Product overview

The automatic I-shaped carton sealing machine has the characteristics of automatic operation and high efficiency. It can continuously fold and seal cartons, improving production efficiency and packaging consistency.
The machine usually has certain size adaptability and can be adjusted to cartons of different sizes. This flexibility makes the machine suitable for carton sealing needs of various sizes.
Automatic I-shaped carton sealing machines usually adopt stable structures and reliable control systems, which can work stably for a long time and reduce failures and downtime.
The automatic carton sealing machine can efficiently complete the packaging of cartons through automated folding and sealing operations. It can realize top-to-bottom sealing and four-corner I-shaped sealing, providing stable and reliable sealing effect. This kind of machine plays an important role in the packaging industry, improving the efficiency and consistency of sealing work.

2 , Product specifications

Equipment model GL-FX500T
Counting method automatic
Carton specification length

340mm-700mm, width 120mm-500mm, height 120mm-600mm. (customizable)

Packing speed 360~600 boxes/hour

Conveying method

belt + roller

Voltage power

220V/50Hz/60Hz/1Ph or 380V/50Hz/60Hz/3Ph

Use air source 6kgf/cm² 100nl/min
Power consumption

Maximum 1KW

Dimensions

3950*2900*1600mm(L*W*H)

Weight about 700KG

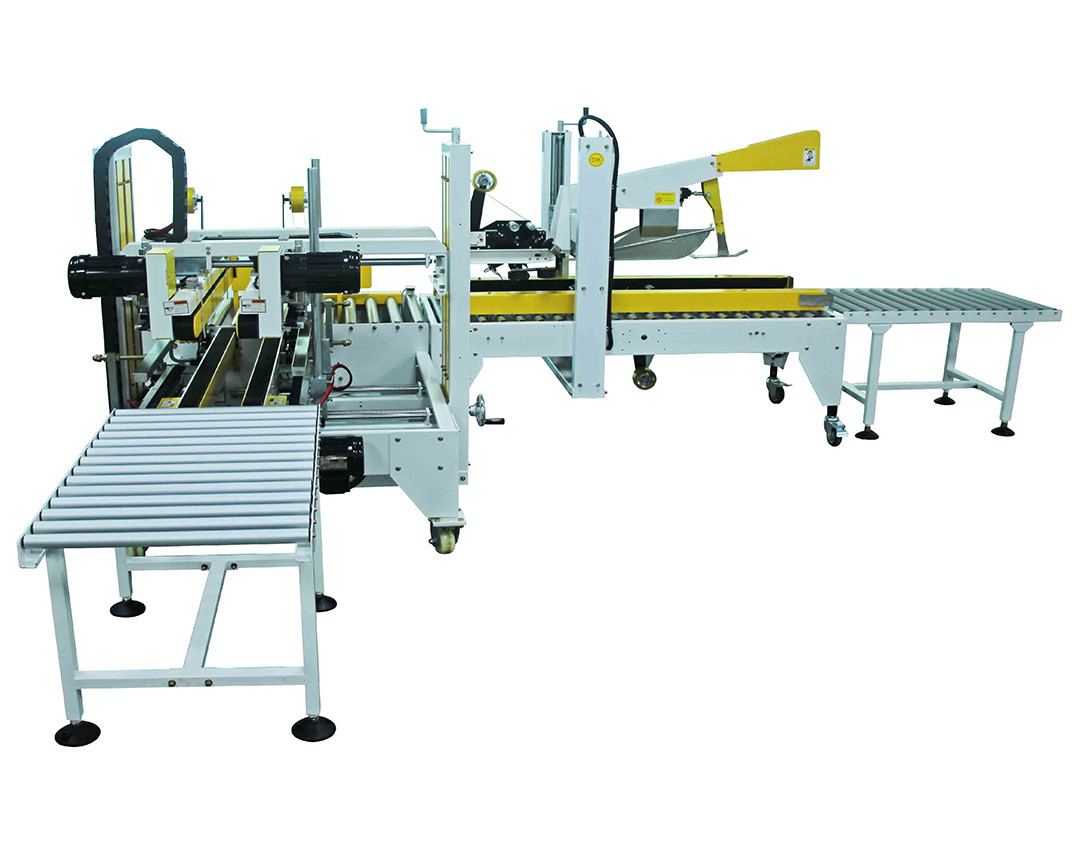

GL-FX500T Automatic Carton Sealing Machine Beautifully without Wrinkles

I Shaped Carton Sealing Machine ODM Horizontal Carton Packing Machine

3 , Technical features

1 . The transmission mode is driven by belts on both sides of the lower side. The upper cover is automatically folded, and the upper and lower boxes are sealed in one go (can be wired or stand-alone operation). The machine contains a 90-degree turning box pushing mechanism, and the four-corner I-shaped box sealing is completed in one go. Finish.
2 . Seal the top, bottom and four corners of the carton.
3 . Manually adjust the height and width when changing specifications.
4 . The carton sealing machine adopts belt conveyor, powered roller and unpowered roller.
5 . The work surface can be customized according to customer requirements.
6 . Electrical configuration: the contactor is from France's "Schneider", the pneumatic components are from Taiwan's "Yadeke", and the motor is from "Taibang".
7 . Carton specifications are 340mm-700mm long, 120mm-500mm wide, and 120mm-600mm high. (customizable)

4 , Scope of application

1 . This product is suitable for carton packaging of food, pharmaceutical chemicals, electronic products, printed matter, toys, furniture, bathroom lighting and other products. For example, it is suitable for cartons, cartons, door panels, glass, and hardware frames. This model is mainly used for carton packaging.
2 . Suitable for kraft paper tape and BOPP tape.

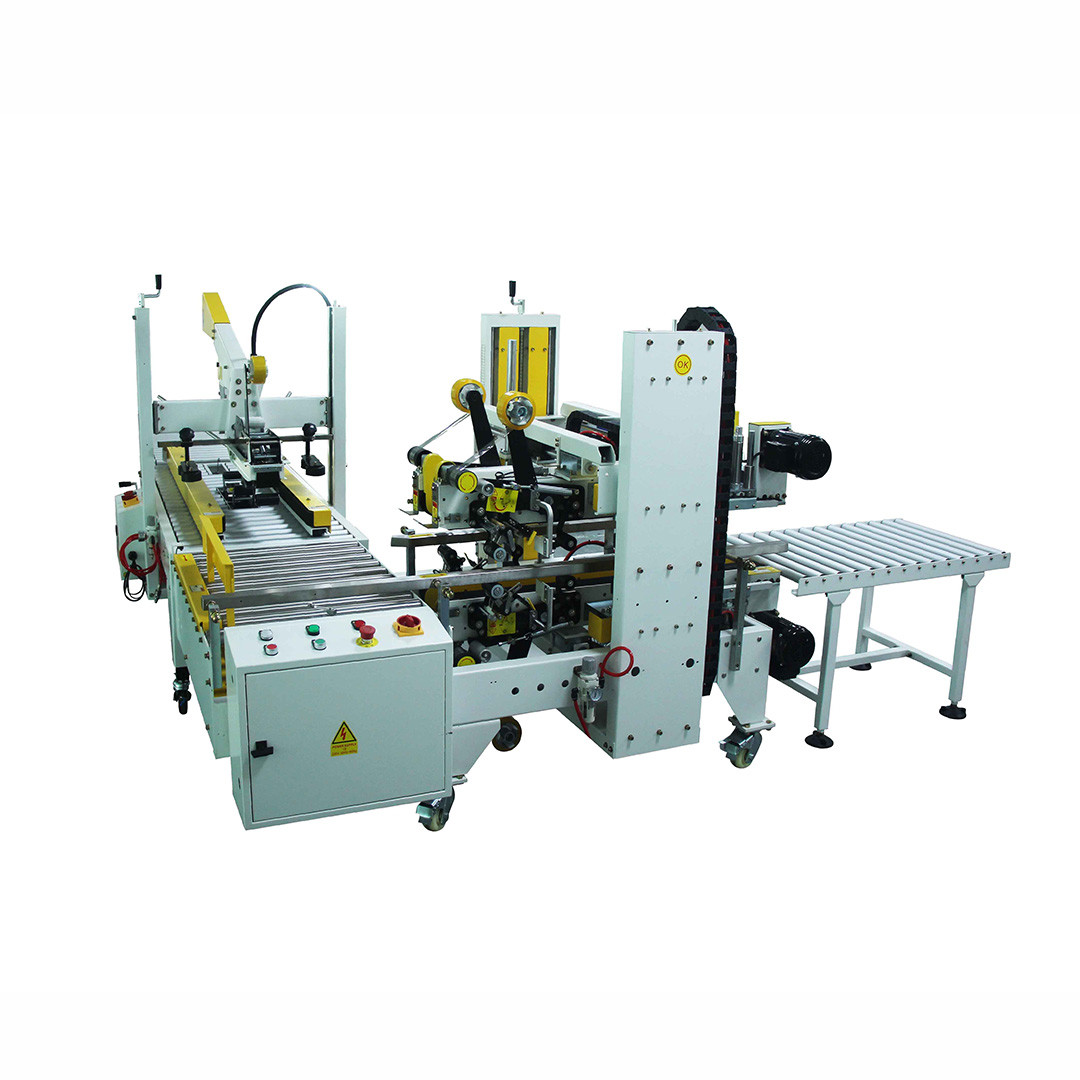

GL-FX500T Automatic Carton Sealing Machine Beautifully without Wrinkles

I Shaped Carton Sealing Machine ODM Horizontal Carton Packing Machine

5 , Operating procedures

GL-FX500T carton automatic I-shaped sealing machine can automatically fold the upper lid, seal the top and bottom of the carton, and seal the carton in the I-shaped four corners.
1 . The materials are manually pushed onto the roller, and the belt drives the roller to push the carton away. The cover is automatically folded, and the top and bottom sealing is completed in one go.
2 . After the upper and lower sealing is completed in the previous process, the carton is turned 90 degrees to push the box to the next process for automatic four-corner I-shaped sealing.
3 . Finally, we saw that the upper and lower seals and four corner seals of the carton were sealed accurately, beautifully, and without wrinkles.

6 , FAQ

Q : Can you explain to me how this whole deal went?

A : 1. Sign contact/order on Alibaba, we have trade assurance

2 . Arrange 50% deposit to our factory

3 . Factory arranges production

4 . Test and inspect the machine before shipment

5 . Inspection by customer or third party through online or on-site testing

6 . Arrange the balance before shipment.
