Automatic Seal Nuts Carton Box Packing Machine Fastener Plastic Parts

Name: Automatic Seal Nuts Carton Box Packing Machine Fastener Plastic Parts
Brand: Galaxybridge
Price: 1 USD

Automatic Seal Nuts Carton Box Packing Machine Fastener Plastic Parts Manufactures

Brand Name : Galaxybridge

Model Number : GL-FX500T

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Negotiable

Supply Ability : 100 Set/Sets per Month

Delivery Time : To be negotiated

Packaging Details : Packed in wooden cases

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Weight (KG) : 700

Dimension(L*W*H) : L3950*W2900*H1600mm

Application : Hotels, Garment Shops, Building Material Shop

Driven Type : Electric

Voltage : 220V/50Hz/60Hz/1Ph 380V/50Hz/60Hz/3Ph

Contact Now

Easy Setting Automatic Seal Nuts Fastener Plastic Parts Medical Masks Small Bags Packing Machine

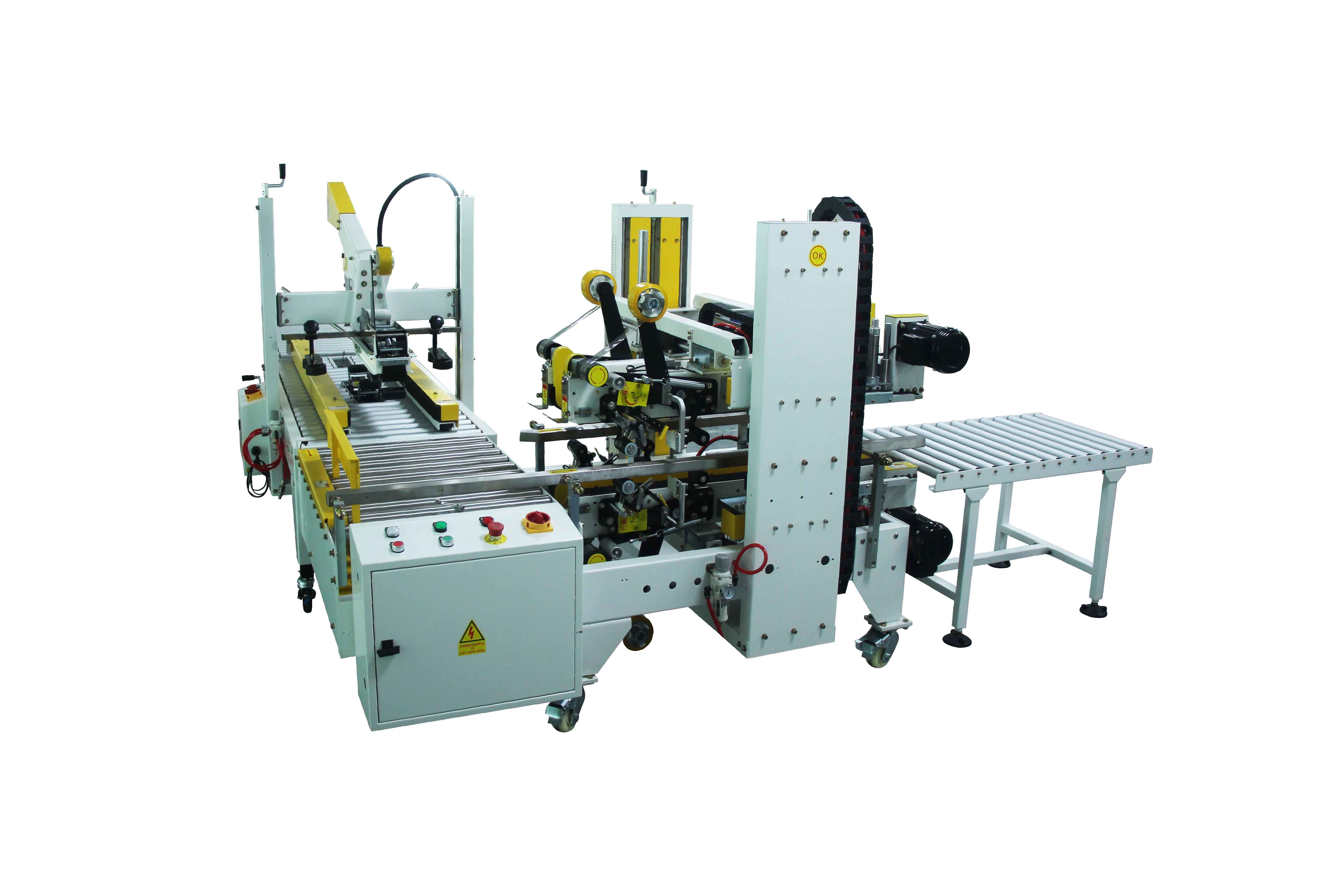

GL-FX500T (I-shaped case sealer)

1) Technical characteristics
The transmission mode adopts the belt drive at the lower side and the upper cover is automatically folded. The upper and lower "one letter" box sealing is completed at one time (wiring or single machine operation is available). The machine platform includes a 90 degree steering box pushing mechanism. The four corner "I" type box sealing is completed at one time.
The upper and lower cartons and the four corners are sealed.
Adjust the height and width manually when changing specifications.

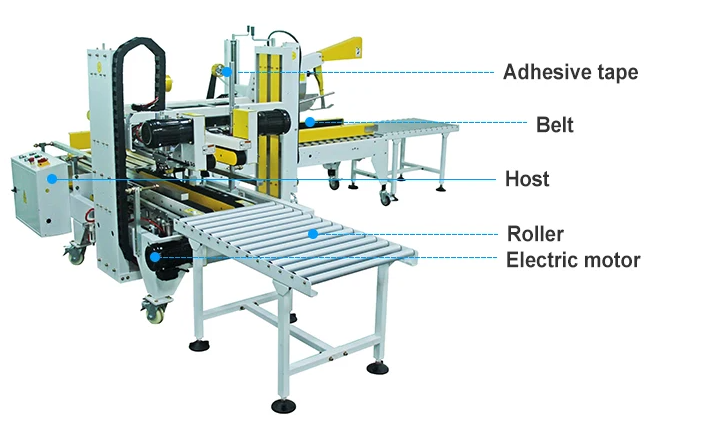

The sealing machine adopts belt conveyor, power drum and non power drum.
Worktable can be customized according to customer requirements.
Electrical configuration: French "Schneider" is used as the contactor, Taiwan "Yadeke" as the pneumatic component, and Taiwan "as the motor.
The carton is 340-700 long, 120-500 wide and 120-600 high. (Customizable)
2) Scope of application and functional characteristics
This product is suitable for carton packaging of food, pharmaceutical and chemical products, electronic products, printed products, toys, furniture, bathroom lighting and other products, such as carton, carton, door panel, glass, and hardware frame. This model is mainly used for carton packaging.
Suitable for kraft paper tape and BOPP tape.

Product specifications

Equipment model	GL-FX500T
Conveying mode	belt+roller
Noise level	maximum 80DBA
Packing speed	360~600 boxs/hour
Power consumption	max. 1KW
Voltage power	220V/50Hz/60Hz/1Ph 380V/50Hz/60Hz/3Ph
Air source	6kgf/cm ² 100nl/min
Usage	Box sealing
Dimensions	l3950mm long/2900mm wide/1600mm high
Weight	about 700KG
