Manual Feeding Vertical Flow Pack Machine Semi Automatic Packaging

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

Manual Feeding Vertical Flow Pack Machine Semi Automatic Packaging

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B860T

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Semi Automatic Packaging Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : Manual delivery

Packing speed : 1-60 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 1700*750*1550mm

Weight (KG) : About 100kg

Warranty : 1 year

Contact Now

GL-B860T Manual Feeding Vertical Flow Packaging Machine Reduce Labor Costs

1 , Product overview:

The manual feeding semi-automatic packaging machine is a device used for packaging products, which combines the functions of manual feeding and automatic packaging. This kind of machine can improve packaging efficiency and reduce labor costs, and is suitable for packaging various granular, powdery or solid products, such as food, medicine, cosmetics, chemicals, etc.
The machine is usually equipped with a dosing system for dispensing product from containers or storage into packaging containers. The feeding system can be operated manually, or some auxiliary tools and devices can be used to improve operating efficiency.
Able to adapt to different sizes and types of packaging containers, such as bags, jars, bottles, etc. You can choose the appropriate packaging container according to the characteristics of the product.
The manual feeding semi-automatic packaging machine can realize a variety of packaging methods, such as bagging, bottling, canning, etc., depending on the requirements of the product and the type of packaging container.

2 , Product specifications

Equipment model GL-B860T
Counting method Manual delivery
Bag size

width 40-140 length within 200 (normally 140)

Packing speed 1-60 bags/min
Sealing shape stripe, back sealing/three side sealing (conventional back sealing)
Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape

figure cutter tooth shape

Dimensions 1700*750*1550mm(L*W*H)
Weight about 100KG

GL-B860T Manual Feeding Vertical Flow Packaging Machine Reduce Labor Costs

Manual Feeding Vertical Flow Pack Machine Semi Automatic Packaging

3 , Operation process

this is hand put chain bucket packaging machine GL-B860T, which can automatically fill, make bags, seal and cut, and print text and numbers on the top of the bag.
1 . The operation screen in Chinese and English can set the packing quantity and the length of the packing bag.

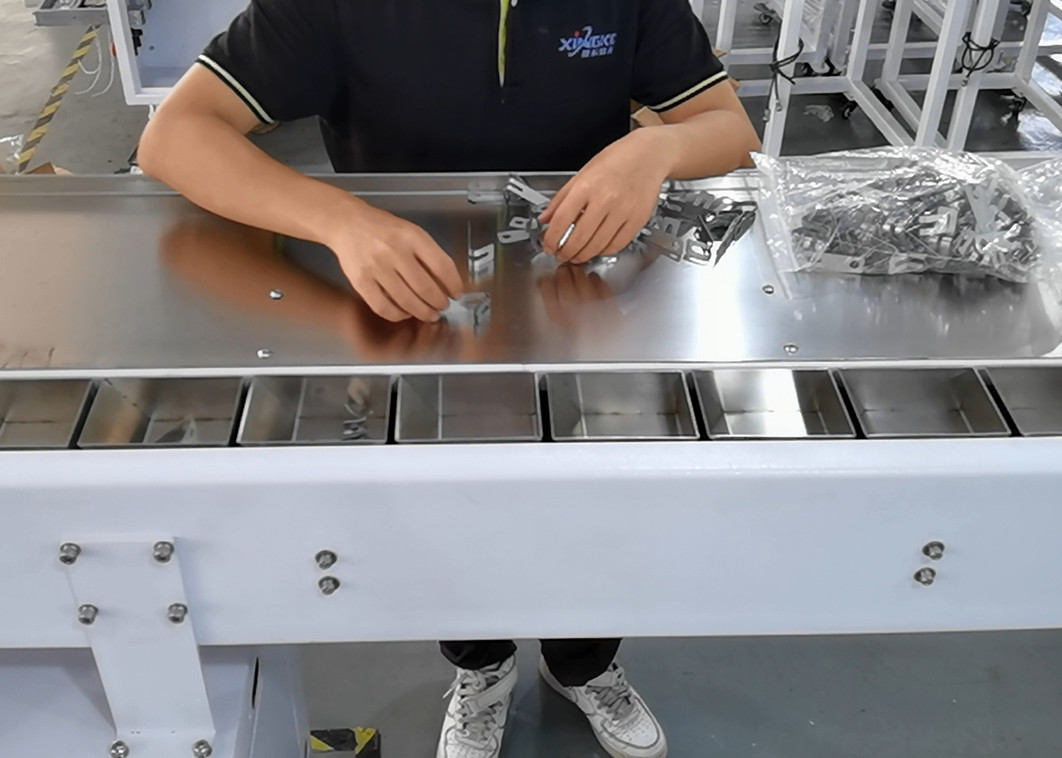

2 . Manually put the material into the feeding box
3. The chain bucket drives the material box to fill the product into the former for automatic packaging.
4 .The printer automatically prints information to the packaging film, it can print text, symbols, dates, numbers, etc.
5 . Open the safety door, will see that the sealing area of the equipment . After the longitudinal sealing bag is made, the bag is pulled according to the set length, waiting for the material to be filled, and then sealed and cut off by the horizontal sealing, finally packaging.
6 .The bag of the final product was beautiful and uniform, with vents to exhaust air, and the number was accurate. And has the black printed text and date.

4 , Fast delivery

① . upon receipt of payment, delivery date will be in 15~30 working days .

② . by Air,Sea or Express.

③ . Shipment cost will depend on the destination,shipment way and the weight of the goods.

GL-B860T Manual Feeding Vertical Flow Packaging Machine Reduce Labor Costs

Manual Feeding Vertical Flow Pack Machine Semi Automatic Packaging

5 , our service

We have perfect service system:

Before sales Services

① . many professional packing videos,give you direct feeling about our machines.

② . free packing solution from our R&D department.

In sales Service

We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After sales Service

① . Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .

② . The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .

③ . If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available
