Rubber Pellets Vertical Flow Pack Machine Automatic Counting Packaging Machine

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

Rubber Pellets Vertical Flow Pack Machine Automatic Counting Packaging Machine

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B862

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Automatic Packaging Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : automatic

Packing speed : 1-20 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 1100*1000*1550mm

Weight (KG) : About 180kg

Warranty : 1 year

Contact Now

Rubber Pellets Automatic Counting Packaging Machine Fully Automatic Safe Operation

1 , Product overview

This machine can ensure that the packaged bags are uniform, regular, beautiful and strong. This helps improve the appearance quality of the product and the safety of the packaging. In addition, as needed, the machine can also be equipped with expansion equipment such as coding machines, checkweighers, labeling machines, and elevators to meet more functional needs.
This machine is suitable for automatic mixed packaging or separate automatic packaging of two materials. It can be used for packaging screws, nuts, flat washers, elastic washers, toys, standard parts and other materials. Through the automatic counting function of the vibrating plate, the product is filled into the former for automatic packaging. In addition, the equipment can also use the free space of the equipment to manually place other materials for mixed packaging.
This automatic mixing, automatic counting, filling and packaging machine provides an efficient, accurate and reliable packaging solution and is suitable for scenarios where different materials need to be automatically mixed for packaging. It increases production efficiency, reduces manual operations, and ensures consistent packaging quality.

2 , Product specifications

Equipment model GL-B8612
Counting method

optical fiber counting/blocking and putting

Bag size

width 40-140 length less than 200 (conventional 140)

Packing speed

stripe, back seal/three side seal (usually back seal)

Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape figure cutter tooth shape
Dimensions 1100*1000*1550mm(L*W*H)
Weight about 180KG

Rubber Pellets Automatic Counting Packaging Machine Fully Automatic Safe OperationRubber Pellets Vertical Flow Pack Machine Automatic Counting Packaging Machine

3 , Technical characteristics

1 . Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.

2 . Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3 . The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.

4 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

4 , operation process

GL-B862 screw, rubber particles with cursor automatic mixing automatic counting filling packaging machine, the equipment can automatically code, seal and cut.
1 . The Chinese and English touch screens can be switched, and the packing quantity and packing speed can be set.

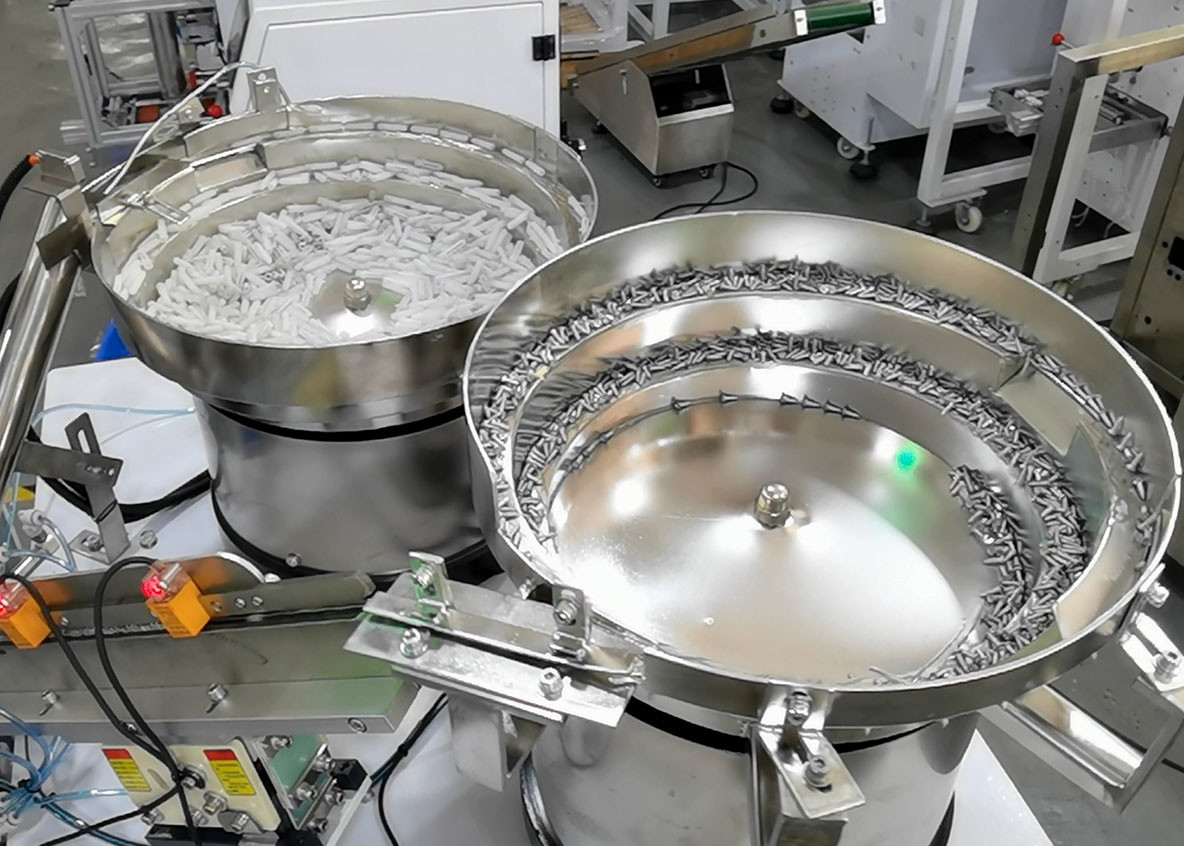

2 . The screws are automatically arranged to the track by the vibrator bowl.
3 . .The rubber particle vibrator bowl is automatically arranged, and the feeding is started according to the set quantity, and the discharge place has a grating induction counting.
4 . The track stocks the material, the screws are counted through the cylinder block and discharge method, the rubber particles are automatically counted, and the material is discharged to the former according to the set number.
5 . The cursor sensor printed on the packaging film according to the black dots, and senses one or more black dots to start cutting the film to ensure that the printed environmental logo is located in the center of the finished bag.
6 . Open the safety door, will see that the sealing area of the equipment . Automaticlly filling , and then sealed and cut off by the horizontal sealing, finally packaging.

Rubber Pellets Automatic Counting Packaging Machine Fully Automatic Safe Operation

Rubber Pellets Vertical Flow Pack Machine Automatic Counting Packaging Machine

5 , Scope of application and functional features

1 . This product is applicable to automatic mixing under 2 kinds of materials or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product uses chain bucket turns box, vibrator bowl, automatic counting on materials to box, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space.

2 . It is suitable for "OPP/CPP/ lamination film " as sealing material.

6 , FAQ

Q : How do I find the right packaging machine for my product?

A : Tell us your product details and packaging requirements.

1 . What kind of product?

2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.

3 . The weight of each package you need.

4 . Your requirements for machine and bag type.

Q : Are you a real factory/manufacturer?

A : Of course. Our factory is third party inspected. We welcome you and pick you up from your hotel for free.

For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.

Q : Can engineers serve overseas?

A : Yes, we can send engineers to your factory, but all costs will be borne by the buyer. In order to save your cost, we will send you a complete and detailed machine installation video and provide you with full help throughout the process.
