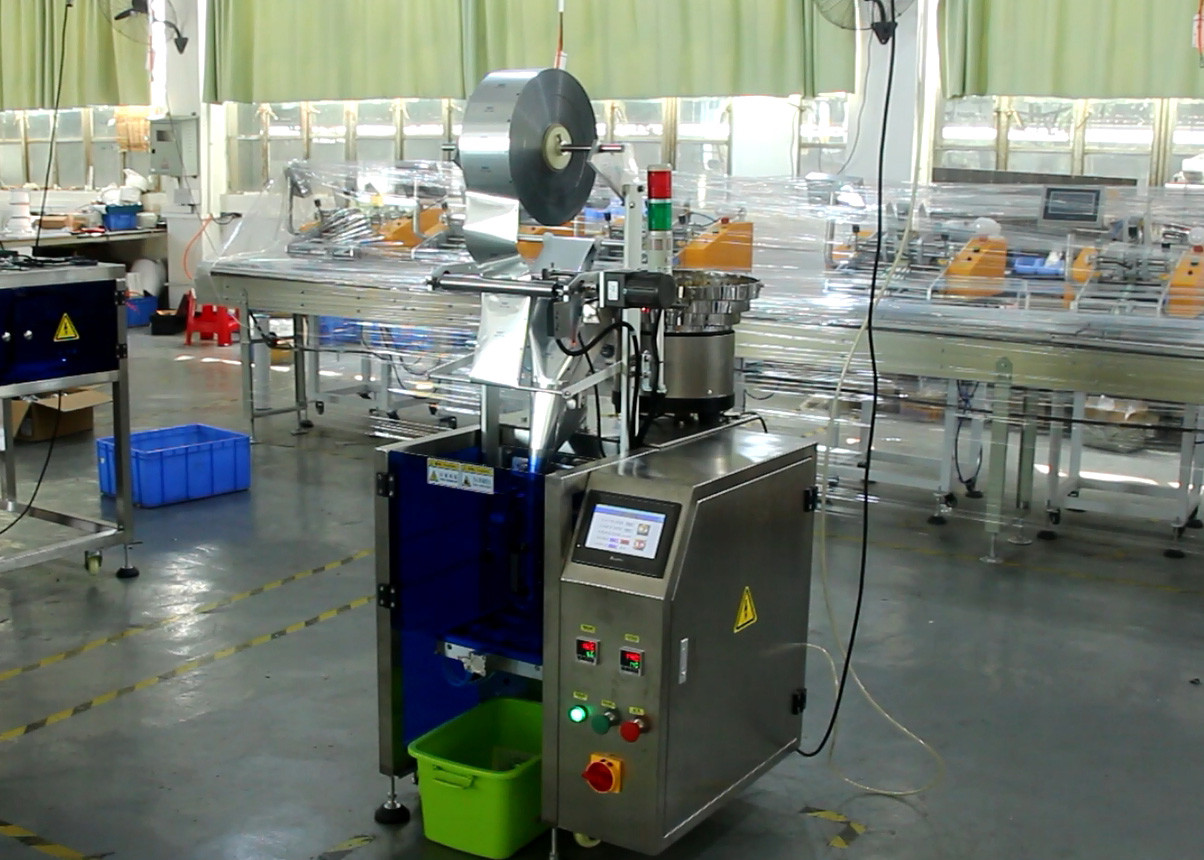

GL-B861 Fully Automatic Single Tray Packaging Machine Customizable Support Adding Devices
1 , Product overview
The machine allows adjustments to the length of the bags and the total number of packages. The operator can set it according to specific needs, and when the set quantity is reached, the alarm will be automatically triggered for the next step of processing.
The machine can ensure that the bag shape remains uniform, regular, beautiful and firm during the packaging process. This helps improve the appearance quality of the product and the safety of the packaging.
The machine also provides expansion equipment options, such as coders, checkweighers, labelers, and elevators. These devices can be retrofitted as needed to achieve more functionality and automated production line integration.
The machine is equipped with a yield counting function that records the number of packages completed. This facilitates the monitoring and management of production planning and production efficiency.
2 , Product specifications
| Equipment model | GL-B861 |
| Counting method | automatic |
| Bag size | width 40-140 length 200 (conventional 140) |
| Packing speed | 1-60 bags/min |
| Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
| Voltage power | 220V/50HZ P≈0.6KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | figure cutter tooth shape |
| Dimensions | 900*750*1550mm(L*W*H) |
| Weight | about 150KG |
GL-B861 Fully Automatic Single Tray Packaging Machine Customizable Support Adding Devices
3 , Technical characteristics
1 . bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.
2 . Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3 . The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.
4 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
4 , application
1 . This product is suitable for automatic packaging of single materials, such as: granules, tablets, capsules, tablets, pills, etc. After the vibrating plate is automatically counted, the product is filled into the former for automatic packaging, and other materials can also be manually mixed using the spare space of the equipment.
2 . It is suitable for "OPP/CPP/ lamination film" as sealing material.
GL-B861 Fully Automatic Single Tray Packaging Machine Customizable Support Adding Devices
5 , operation process
GL-B861 tablet aluminum film , the machine automatically counts and automatically fills the packaging.

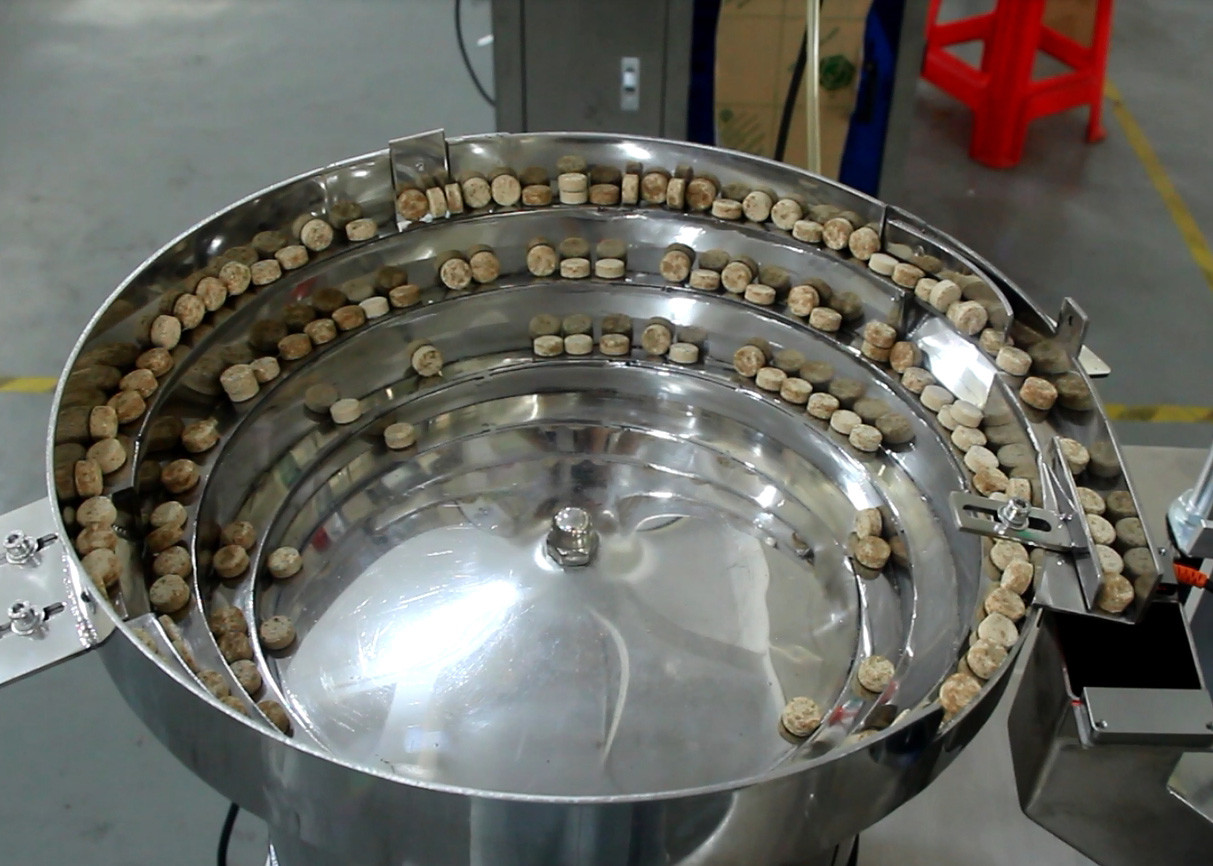

The materials are automatically arranged by the drum, counted by the optical fiber, and put into the former in the way of track stopper and material discharge.
we will see that the sealing area of the equipment , automaticlly filling , and then sealed and cut off by the horizontal sealing, finally packaging.
What we finally see is the final product. This packaging film is an aluminum film for food packaging. The bag shape is beautiful and uniform, and it is not easy to break. Thank you for watching.
6 , our service
We have perfect service system:
Before sales Services
①,many professional packing videos,give you direct feeling about our machines.
②,free packing solution from our R&D department.
In sales Service
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After sales Service
①,Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .
②,The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .
③,If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available
