Brand Name : Galaxybridge
Model Number : GL-B872Z
Certification : CE/EMC
Place of Origin : Guangdong, China
MOQ : 1Sets
Price : Price Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 20 Set/Sets per Month
Delivery Time : 15~30 working days
Packaging Details : Packed in wooden cases
Product name : Packaging Machine
Function : Filling, Sealing, Counting, Automatic packaging
Counting mManual placementethod : Automatic
Packing speed : 1-60 bags/min
Voltage power : 220V/50HZ P≈0.6KW
Dimension(L*W*H) : 5600*2100*1850mm
Weight (KG) : About 3600 kg
Warranty : 1 year
Customed made : available
Multi-language : According to your needs

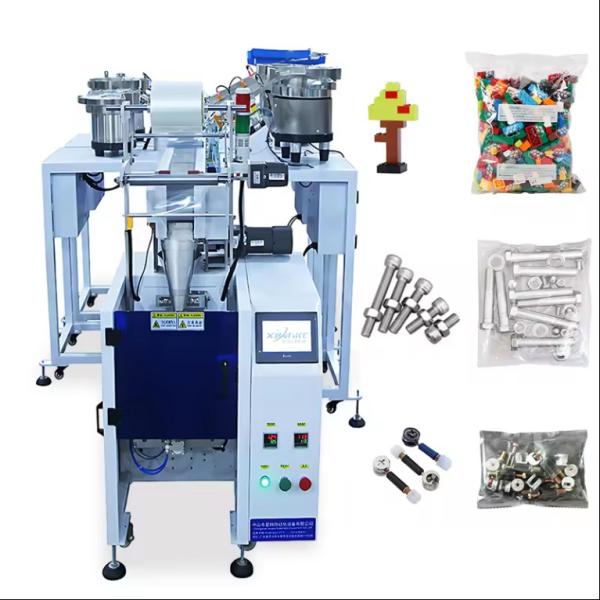

High speed counting plastic parts packaging machine bolt nail wire nail steel stainless packaging machine for fastener pins
1 , Product overview:
This packaging machine is suitable for packaging a variety of products, such as food, pharmaceuticals, cosmetics, daily necessities, etc. It can be adjusted and customized according to the size and shape of the product to suit different packaging requirements.
GAI packaging machines are manufactured using high-quality materials and advanced technology, with stable performance and reliable operation. It works continuously and maintains consistent packaging quality, reducing the risk of human error and damaged products.
2 , Product specifications
Equipment model | GL-B865T |
Counting method | optical fiber counting/blocking and putting |
Bag size | width 40-140 length 200 (usually 140) |
Packing speed | 1-60 bags/min |
Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
Voltage power | 220V/50HZ P≈0.6KW |
Air supply | 0.4-0.8MPA |
Bag mouth shape | figure cutter tooth shape |
Dimensions | 1300mm*1020mm*1500mm(L*W*H) |
Weight | about 1500KG |

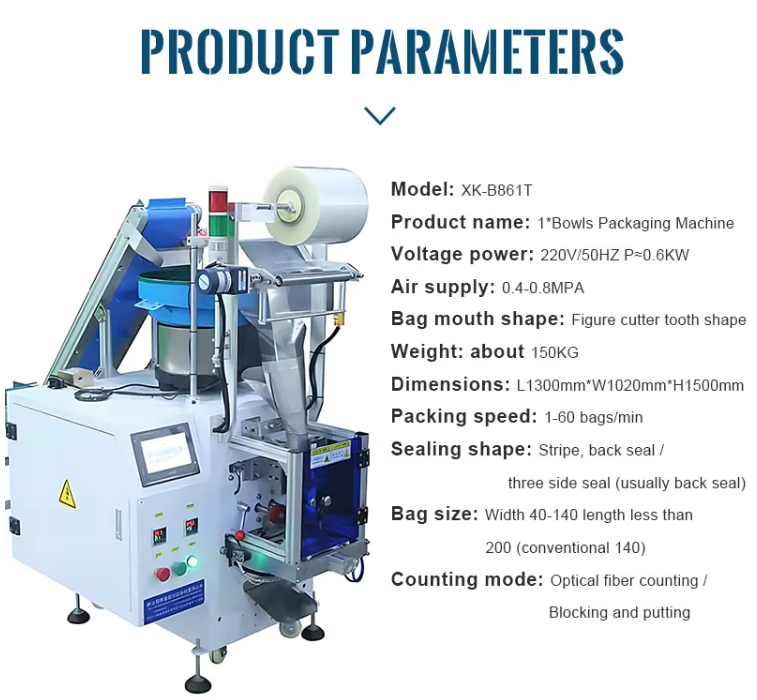

PRODUCT PARAMETERS
3 , Scope of application and functional features

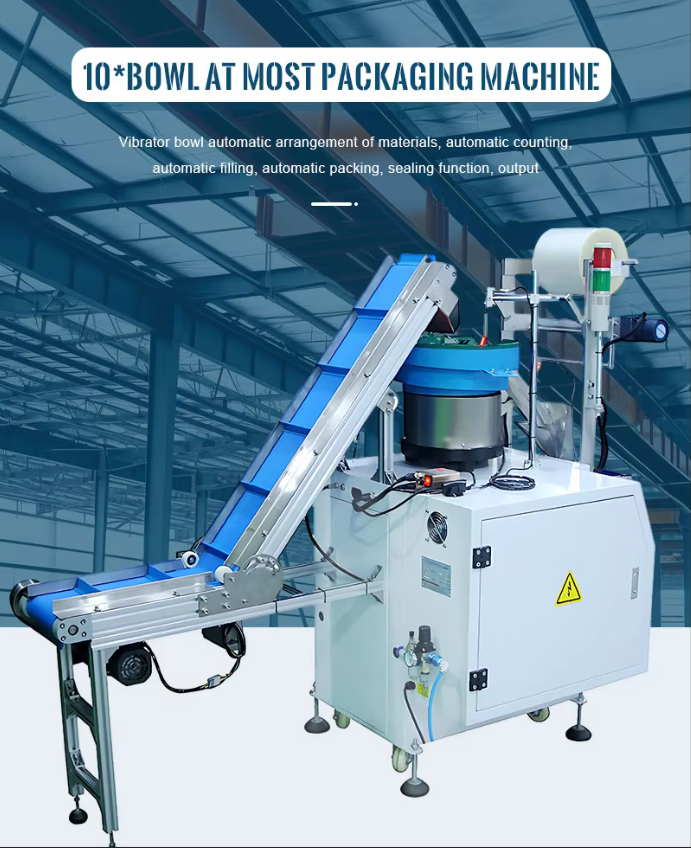

1 . This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 10 vibrator bowls work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting.
2 . It is suitable for "OPP/CPP/ lamination film" as sealing material.

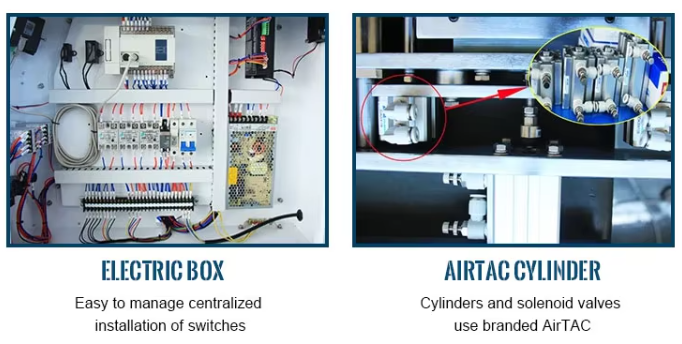

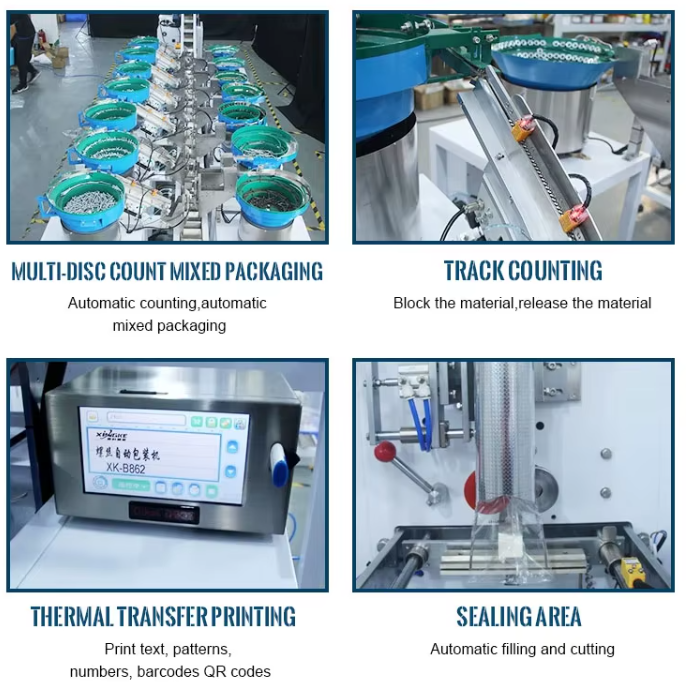

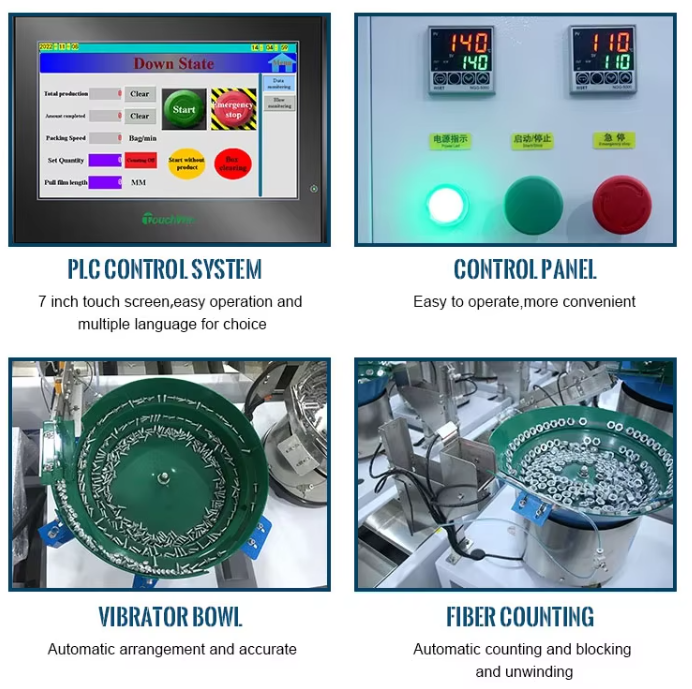

4 , PRODUCT DETAILS
Twelve Tray Automatic Packaging Machine High efficiency for Mixed Products
5 , FAQ
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3. The weight of each package you need.
4. Your requirements for machine and bag type.
Q : Will you provide delivery service?
A : Yes. Please inform us of your final destination and we will verify with our freight forwarder
Shipping costs are quoted for your reference before delivery.
![]() |
High Speed Counting Plastic Parts Packaging Machine Bolt Nail Wire Nail Steel Stainless Packaging Machine For Fastener Images |
