Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

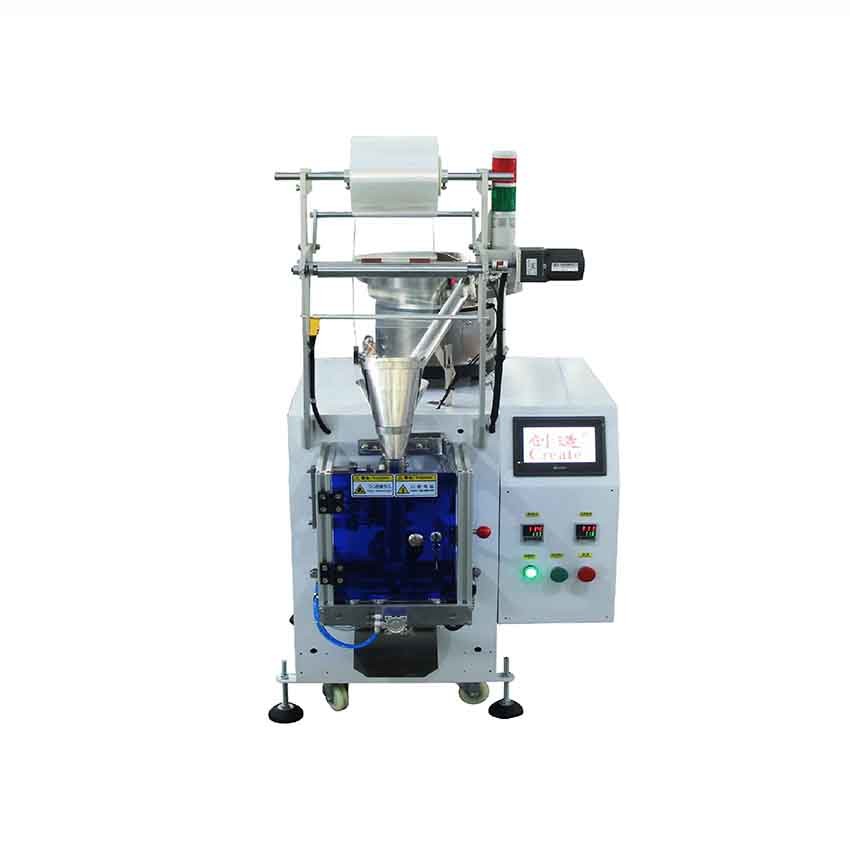

Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B861

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Small Vertical Fully Automatic Packaging Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : Automatic

Packing speed : 1-60 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 1100*750*1550mm

Weight (KG) : About 150 kg

Warranty : 1 year

Customed made : available

Multi-language : According to your needs

Contact Now

GL-B861 Small Vertical Fully Automatic Packaging Machine Simple Operation

1 , Product overview
Our single-tray vertical automatic packaging machines use advanced processes and technologies to improve packaging efficiency and accuracy, and provide reliable packaging protection for your products.
It has fully automated packaging functions, and the entire process from material feeding to sealing can be automated. This greatly improves packaging efficiency, reduces the need for manual intervention and improves the overall efficiency of the production line.
It adopts a vertical design, takes up little space, and is suitable for limited production environments. The design also makes the packaging machine more stable during operation, ensuring high-quality sealing and packaging results.


2 , Product specifications

Equipment modelGL-B861
Counting methodautomatic
Bag sizewidth 40-140 length 200 (usually 140)
Packing speed1-60 bags/min
Sealing shapestripe, back sealing/three side sealing (conventional back sealing)
Voltage power220V/50HZ P≈0.6KW
Air supply0.4-0.8MPA
Bag mouth shapefigure cutter tooth shape
Dimensions1100mm*750mm*1550mm(L*W*H)
Weightabout 150KG


GL-B861 Small Vertical Fully Automatic Packaging Machine Simple Operation
Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861

3 , Technical characteristics
1 . Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.
2 . Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3 . The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.
4 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

4 , our service
We have perfect service system

Before sales Services
① . many professional packing videos,give you direct feeling about our machines.
② . free packing solution from our R&D department.

In sales Service
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After sales Service
① . Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .
② . The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .
③ . If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available

GL-B861 Small Vertical Fully Automatic Packaging Machine Simple Operation
Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861

5 , FAQ

Q : Can engineers serve overseas?
A : Yes, we can send engineers to your factory, but all costs will be borne by the buyer. In order to save your cost, we will send you a complete and detailed machine installation video and provide you with full help throughout the process.

Q : Will you provide delivery service?
A : Yes. Please inform us of your final destination and we will verify with our freight forwarder
Shipping costs are quoted for your reference before delivery.

Q : Are you a real factory/manufacturer?
A: Of course. Our factory is third party inspected. We welcome you and pick you up from your hotel for free.
For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.
