5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

Brand Name : Galaxybridge

Model Number : GL-B865T

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

After-sales Service Provided : Video Technical SupportOnline Support

Advantage : Easy Operation High Efficiency

Film material : OPP CPP PET PE

Sealing shape : stripe, back seal/three side seal (usually back seal)

Counting mode : optical fiber counting/blocking and putting

Production Capacity : 1-60 bags/min

Contact Now

GL-B865T Automatic 5 Items Mixing Products Packing Plastic Bag Packaging Machine

1 , Product overview:

The 5-tray bucket packaging machine can process five products at the same time, place them in packaging materials, and automatically complete packaging processes such as sealing, heat sealing, and shrinking. It is suitable for products of various shapes and sizes, such as box-shaped, cylindrical, flat, etc.

2 , Product specifications

Equipment model GL-B865T
Counting method

optical fiber counting/blocking and putting

Bag size

width 40-140, length less than 200 (usually 140)

Packing speed 1-60 bags/min
Sealing shape

stripe, back seal/three side seal (usually back seal)

Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag’s both sides

figure cutter tooth shape

Dimensions

length 1350mm/ width 1500mm/ height 1550mm

Weight About 350KG

The names of various parts of the machine

5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

3 , Technical characteristics

1 . Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.

2 . Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3 . The length of packaging bag is adjustable, the total number of packaging is adjustable, automatic alarm when the set number is reached.

4 . After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

4 , Scope of application

1 . This product is suitable for automatic mixing or separate packaging of 5 kinds of materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment.

2 . It is suitable for "OPP/CPP/ lamination film" as sealing material.

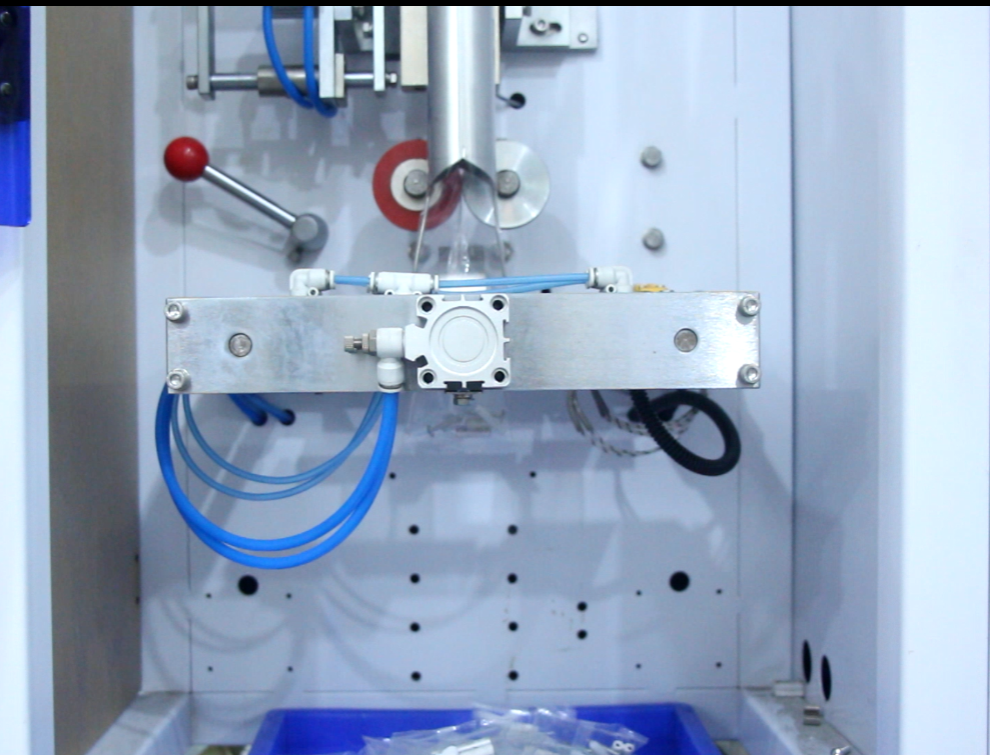

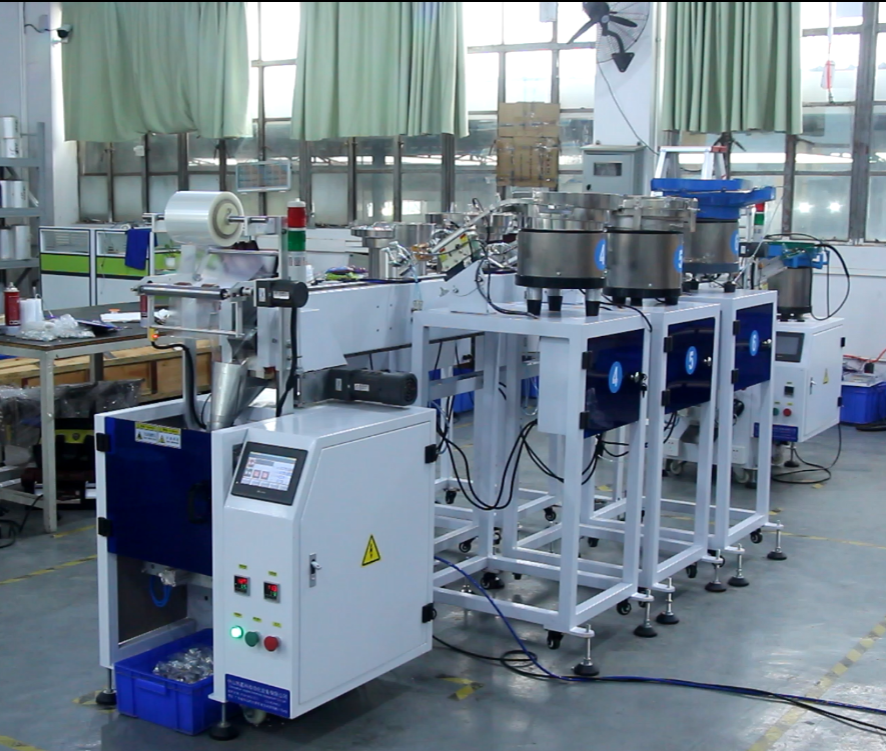

5 ,Product actual pictures

5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

5 Tray Bucket Plastic Bag Packaging Machine GL-B865T Automatic

6 , FAQ

Q1. How to find a packaging machine suitable for my product ?
1 . What kind of product ?
2 . Production size or bag / sachet / pouch size of you need for the product packing the length , width
3 . The weigh of each pack you need
4 . You requirement for the machines and the bag type


Q2. Are you a real factory / manufacturer ?
Of course.Our factory is inspected by third party.We much welcome you to visit us and free to pick you up from hotel For some reason you cannot visit our factory,we can use live video so that you can visit us online.


Q3. Is engineer available to serve oversea ?
Yes , we can send engineers to your factory but all the fee will be on buyers .In order to save your cost , we will send you a video of full details machine installation and assist you till the end.


Q4. How can we make sure about the machine quality after placing the order ?
Before delivery , we will check the stability of machine and share you the testing videos until you are satisfied . We will setting all the parameters well And also you can arrange for quality checking by yourself or by your contacts in China.


Q5. Can you explain me the whole transaction progress ?
1 . Sign the Contact / order on Alibaba we have trade assurance
2 . Arrange 50% deposit to our factory
3 . Factory arrange production
4 . Testing detecting the machine before shipping
5 . Inspected by customer or third party through online or site test
6 . Arrange the balance payment before shipment


Q6. Can you explain me the whole transaction progress ?
Yes . Please inform us of your final destination , we will check with our shipping agentto quote the shipping cost for your reference before delivery .
