Seal Cutter Machine 380V Intelligent Plastic Cutting Sealing Machine

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

Seal Cutter Machine 380V Intelligent Plastic Cutting Sealing Machine

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-FQ500

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Fully Automatic Sealing Cutting Machine

Function : labeling, conveying, bagging, sealing and shrinking

Counting mManual placementethod : Automatic

Sensing method : Horizontal

Packing speed : 5-60 bags/min

Voltage power : 380V/50Hz P≈40KW

Dimension(L*W*H) : 3750*1100*1700mm

Weight (KG) : About 800 kg

Warranty : 1 year

Customed made : Available

Contact Now

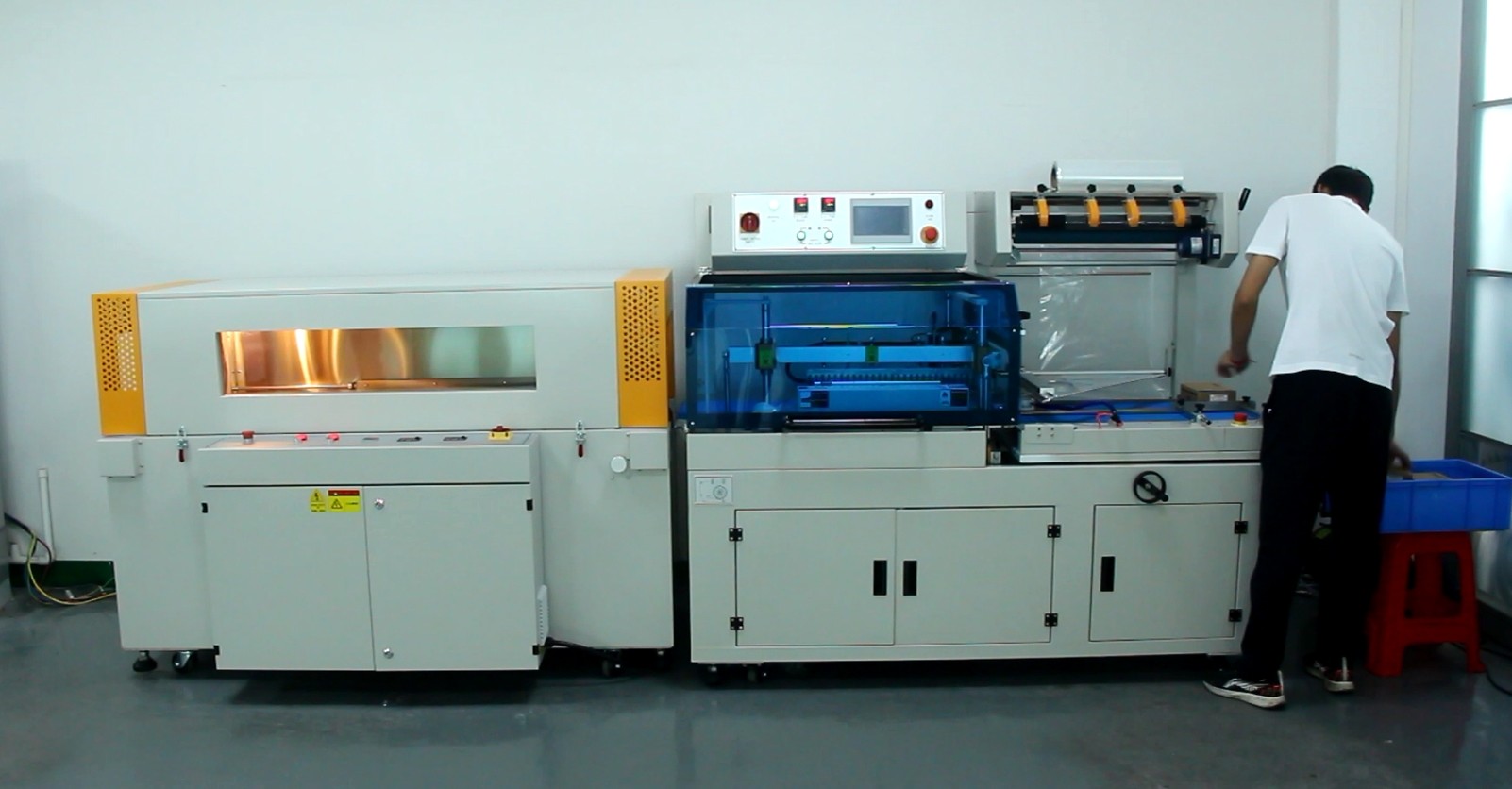

GL-FQ500 Sealing Cutting Machine Automatic Feeding Intelligent Temperature Control Shrinkage

1 , Product overview:

Fully automatic heat shrink sealing and cutting machines usually feature high-speed operation and high precision. It can complete a large amount of sealing and cutting work in a short time and maintain the accuracy and consistency of sealing and cutting. This helps improve production efficiency and product packaging quality.
The machine usually has certain box size adaptability. It can be adjusted according to different packaging box sizes to meet packaging needs of different specifications. This flexibility makes the machine suitable for packaging boxes of various sizes.
It is also usually equipped with a centralized control system for setting packaging parameters and monitoring the work process. The operator can adjust the sealing and cutting temperature, sealing and cutting speed, etc. through the control system, and monitor the working status of the machine.

2 , Product specifications

Equipment model GL-FQ550
Counting method automatic
Bag size

length within 500, width within 200 (can be customized)

Packing speed 5-60 bags/min

Conveying method

belt + roller

Voltage power

380V/50Hz P≈40KW

Air supply 0.4-0.8MPA
Bag mouth shape

flat mouth heat shrinking

Dimensions

3750*1100*1700mm(L*W*H)

Weight about 800KG

GL-FQ500 Sealing Cutting Machine Automatic Feeding Intelligent Temperature Control Shrinkage

Seal Cutter Machine 380V Intelligent Plastic Cutting Sealing Machine

3 , Technical features

1 . Fully automatic feeding, conveying, bagging and sealing are completed at one time, with high work efficiency and simple operation. If you need to change the packaging size, you only need to adjust the height and wide handle.

2 . No smoke is generated during sealing, reducing environmental pollution.

3 . PLC electric eye control, accurate and durable, and equipped with safety protection devices.

4 . Material induction horizontal or vertical double electric eye induction mode, connected to the heat shrink furnace for tightening.

5 . The use of electronic governor can step regulate the speed of the conveyor belt, and double-layer heat insulation device.

6 . Keep the indoor constant temperature and ensure that the appearance is not too hot, stainless steel heater.

7 . The high-power fan has large air volume and uniform air flow, which makes the shrinking machine heat up quickly and ensures the perfect shrinkage of small products.

8 . The conveying chain adopts solid rollers and high temperature resistant silicone tube outside, which will not burn the product and can withstand heavy objects.

4 , Scope of application

1 . This product is suitable for packaging shrinkage of food, medicine, chemical industry, electronic products, printed matter, toys, furniture, bathroom lighting and other products. For example, carton, door panel, glass, hardware frame is suitable for PVC, OPP, POF, PP film, this model is mainly conventional products packaging conventional POF heat shrinkable.

2 . Suitable for PVC, OPP, POF, PP, PE heat shrinkable films.

GL-FQ500 Sealing Cutting Machine Automatic Feeding Intelligent Temperature Control Shrinkage

Seal Cutter Machine 380V Intelligent Plastic Cutting Sealing Machine

5 , Operating procedures

1 . Electronic accessories packaging box automatic heat shrink sealing and cutting machine. Manual placement, automatic feeding, conveying, bagging, sealing, heat shrink packaging.
2 . manual placement product into the feed belt , automatic delivery to the sealing incision.
3 . Automatic bagging, sealing to complete the packaging at one time.
4 . Intelligent stable temperature control shrinking, adjustable, after the shrinkage is completed,rolled output to the storage box.
5 .The final product has no bag perforations,compact and is uniform and beautiful.

6 , Company Profile

Hongqiao Trading Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing, and marketing of various types of packaging machinery. Its main products are: screw packaging machines, hardware parts packaging machines, fastener packaging machines, and fully automatic description bag packaging. Machines, fully automatic intelligent packaging lines, etc., are widely used in furniture, bathroom, lighting, locks, auto parts, medical and industrial product packaging and other industries.

Our company has self-operated import and export rights and has very rich experience in exporting mechanical products to all over the world. Our products have passed the EU CE certification.

We always adhere to the work philosophy of innovation, meticulousness and perfection, follow the product concept of "quality first", and create more stable, intelligent, efficient and high-quality packaging machinery and equipment for domestic and foreign customers.
