GL-FQ650 Labeling and Shrink Packaging Machine Production Line for Photo Frame
1 , Product overview:

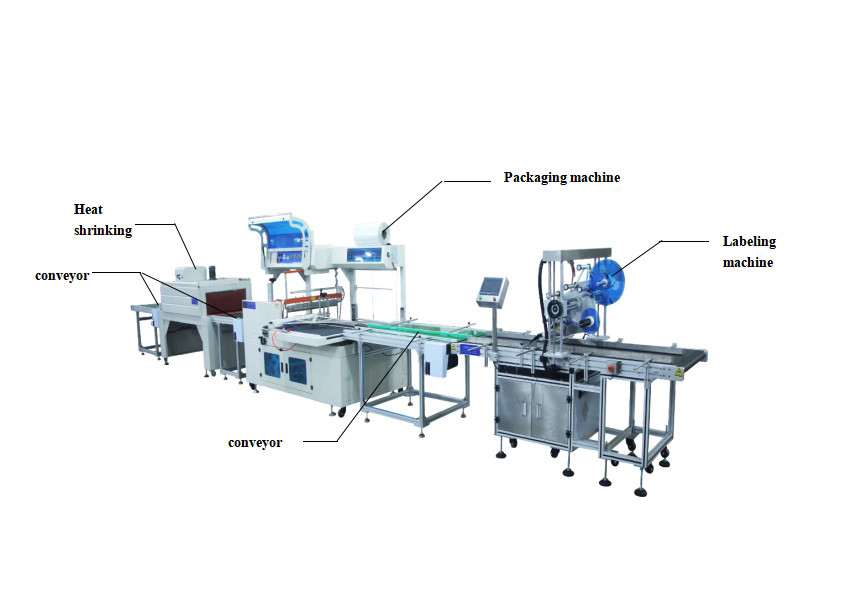

Labeling and heat shrink packaging line is a production line system for automatic labeling and heat shrink packaging. It combines a labeling machine and a heat shrink packaging machine to efficiently complete the product labeling and packaging process.
It is usually equipped with a conveyor system to transfer products from the labeling machine to the shrink packaging machine. The conveyor system can be adjusted according to the needs of the production line, ensuring smooth transportation and continuous packaging of products.
The packaging line usually has a centralized control system that sets packaging parameters, monitors the production process and coordinates the work of various equipment. Operators can set up and adjust the packaging line through the control system to meet the requirements of different products.
2 , Product specifications
| Equipment model | GL-FQ650 |
| Counting method | automatic |
| Bag size | width 650, within 300 length (can be customized) |
| Packing speed | 5-60 bags/min |
| Sealing shape | upper and lower side sealing |
| Voltage power | 380V/50Hz P≈40KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | flat mouth heat shrink |
| Dimensions | 12200*2500*1700mm(L*W*H) |
| Weight | about 400KG |
GL-FQ650 Labeling and Shrink Packaging Machine Production Line for Photo Frame
3 , Technical features
1 . Fully automatic labeling, conveying, bagging, sealing and shrinking are completed at one time, with high work efficiency and simple operation.
2 . If you need to change the packaging size, only need to adjust the height and wide handle to use the same type of products.
3 . Automatic labeling, induction labeling, uniform and accurate position.
3 . No smoke is generated during sealing, reducing environmental pollution.
4 . PLC electric eye control, accurate and durable, and equipped with safety protection devices.
5 . Material induction horizontal or vertical double electric eye induction mode.
6 . Connect the heat shrink furnace for tightening.
4 , Packaging details
Wooden cases are used for packaging
and professionals do not have to worry about the product being damaged during transportation
5 , Why choose us
① . 15+ years of production experience,reliable supplier and professional team
② . 1000+ representative case,various packaging experience
③ . 1 to 1 ,after-sale service ,customer satisfaction
④ . 60+ certificate patents,mature technology
.
GL-FQ650 Labeling and Shrink Packaging Machine Production Line for Photo Frame
6 , Operating procedures
GL-FQ650 Automatic frame photo shrinking labeling packaging machine.
After the product is induced by the labeling machine in the conveyor belt, according size automaticlly labeling.
Automatic sealing bag packing after labeling.
After the packaging is completed, it enters the heat shrinking furnace through the conveyor belt for tightening work.
The final product has a compact shrinkage, no scratch damage, a uniform labeling position, and a beautiful overall effect.
7 , FAQ
Q : How to determine the machine quality after placing an order?
A : Before delivery, we will check the stability of the machine and share the test video with you until you are satisfied. We will set all the parameters.
You can also arrange quality inspections yourself or with your contact in China.
Q : Can engineers serve overseas?
A : Yes, we can send engineers to your factory, but all costs will be borne by the buyer. In order to save your cost, we will send you a complete and detailed machine installation video and provide you with full help throughout the process.
