Hand Throwing Semi Automatic Packaging Machine Bagging Height 1500mm

Hongyangqiao (Shenzhen) Industrial Co., Ltd.
Contact Now

Hand Throwing Semi Automatic Packaging Machine Bagging Height 1500mm

  • 1
  • 2

Brand Name : Galaxybridge

Model Number : GL-B860

Certification : CE/EMC

Place of Origin : Guangdong, China

MOQ : 1Sets

Price : Price Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15~30 working days

Packaging Details : Packed in wooden cases

Product name : Semi-automatic Hand Throwing Packaging Machine

Function : Filling, Sealing, Counting, Automatic packaging

Counting mManual placementethod : Manual delivery

Packing speed : 1-60 bags/min

Voltage power : 220V/50HZ P≈0.6KW

Dimension(L*W*H) : 850*800*1500mm

Weight (KG) : About 150kg

Warranty : 1 year

Contact Now

GL-B860 Semi-Automatic Hand Throwing Packaging Machine Precise Counting For Disposables

Product overview
Semi-automatic hand-injection packaging machines are widely used in various industries and fields, including food and beverages, pharmaceuticals, cosmetics, electronic products, hardware tools, etc. It can adapt to packaging materials of different shapes, sizes and materials.
Semi-automatic hand-fed packaging machines usually have flexible adjustments to accommodate products of different sizes and shapes. You can adjust the parameters of the equipment according to the requirements of the materials being packaged, such as packaging speed, filling volume, sealing time, etc.
This type of packaging machine usually features safety and precision. They are equipped with safety devices to ensure operator safety. In addition, they provide precise packaging control to ensure quality and consistency in every packaging unit.


Product specifications

Equipment modelGL-B860X
Counting methodManual delivery
Bag size

width 40-140 length within 200 (normally 140)

Packing speed1-60 bags/min
Sealing shapestripe, back sealing/three side sealing (conventional back sealing)
Voltage power220V/50HZ P≈0.6KW
Air supply0.4-0.8MPA
Bag mouth shape

figure cutter tooth shape

Dimensions850*800*1500mm(L*W*H)
Weightabout 150KG


GL-B860 Semi-automatic Hand Throwing Packaging Machine Precise Counting for Disposables
Hand Throwing Semi Automatic Packaging Machine Bagging Height 1500mm

Technical characteristics
1) Automatic filling, automatic packing, sealing function, output count.
2) Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3) The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.
4) After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

Operating procedures
GL-B860 Eraser and stationery packaging machine, machine automatic counting and automatic filling packaging.
1) Add a feeding port to facilitate manual feeding of product to shaper.

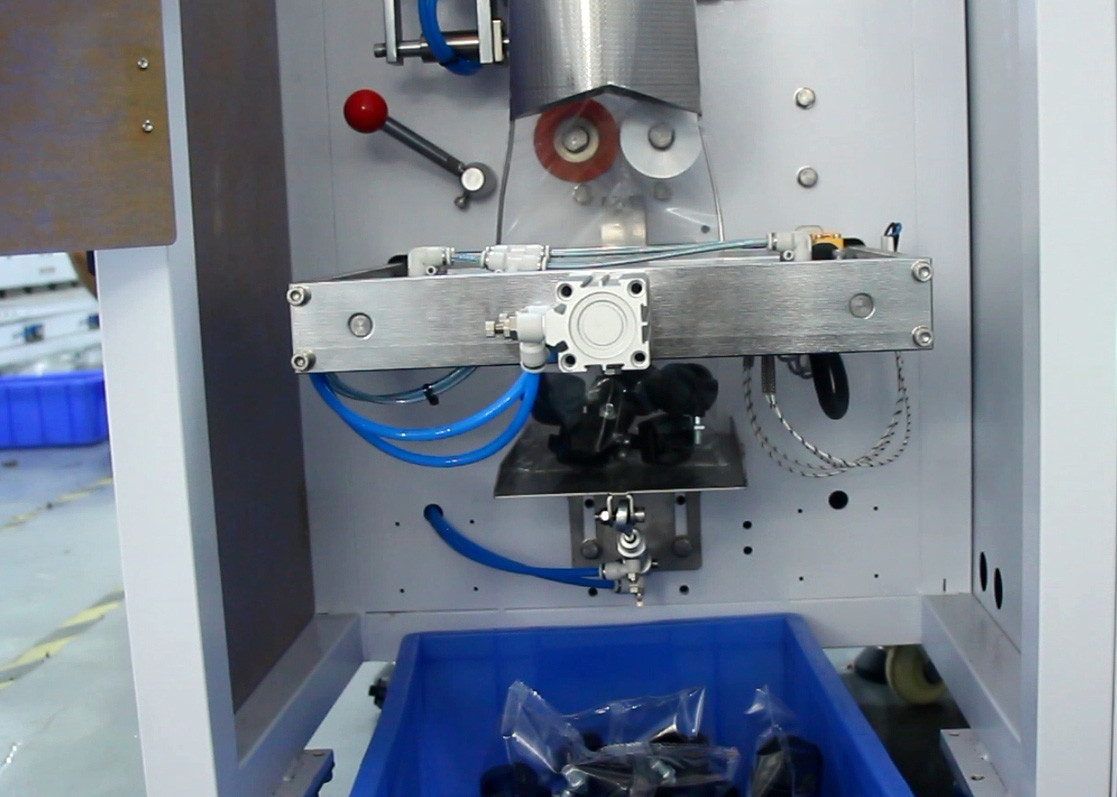

2) we will see that the sealing area of the equipment , automaticlly filling , beat the bag to avoid sticking product, and then sealed and cut off by the horizontal sealing, finally packaging.
3) Finally we see the final product, the bag shape is beautiful, uniform, no damage, and the quantity is accurate.


GL-B860 Semi-automatic Hand Throwing Packaging Machine Precise Counting for Disposables
Hand Throwing Semi Automatic Packaging Machine Bagging Height 1500mm

Scope of application and functional features
1) This product is suitable for products with long, irregular product shapes, large length and width ratios, or products that have extremely high surface requirements such as electroplating, spray painting, baking varnish and other process treatments, plating process plastic products, kitchen and bathroom accessories, toys, bolts, screwdrivers, Data , etc., using manual material input, belt conveying products to the forming machine, automatic filling sealing and packaging.
2) It is suitable for "OPP/CPP/ lamination film" as sealing material.

our service
We have perfect service system

Before sales Services
1) many professional packing videos,give you direct feeling about our machines.
2) free packing solution from our R&D department.

In sales Service
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After sales Service
1) Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .
2) The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .
3) If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available
